TM 5-3805-293-23-5
0303
INSTALLATION
000303
1. If wearstrips can be reused:
a. Exchange wearstrip (Figure 3, Item 1) with wearstrip (Figure 3, Item 2).
b. Exchange wearstrip (Figure 3, Item 4) with wearstrip (Figure 3, Item 3).

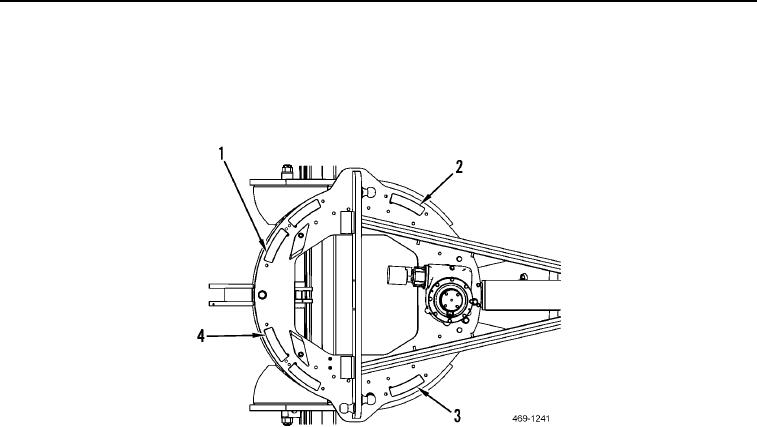

Figure 3. Wearstrip Exchange.
0303
2. Install six wearstrips (Figure 4, Item 9), spacer plates (Figure 4, Item 10), and shims (Figure 4, Item 4) on
drawbar (Figure 4, Item 11).
a. Install shims until shims are flush with top surface of drawbar.
b. Shims must not be on top surface of drawbar before retainer plates are installed.
c.
Shims must be within inside of pocket.
3. Remove bolt (Figure 4, Item 2) from right rear alignment hole (Figure 4, Item 8).
4. Install two plates (Figure 4, Item 3), four washers (Figure 4, Item 1), and bolts (Figure 4, Item 2) on rear right
side of drawbar (Figure 4, Item 11).
5. Remove bolt (Figure 4, Item 2) from left rear alignment hole (Figure 4, Item 5).
6. Install two plates (Figure 4, Item 3), four washers (Figure 4, Item 1), and bolts (Figure 4, Item 2) on rear left
side of drawbar (Figure 4, Item 11).
7. Remove two pusher bolts (Figure 4, Item 6) from drawbar (Figure 4, Item 11).
8. Install two spacers (Figure 4, Item 7) and pusher bolts (Figure 4, Item 6) on drawbar (Figure 4, Item 11).
9. Install two plates (Figure 4, Item 12), four washers (Figure 4, Item 1), and bolts (Figure 4, Item 2) on drawbar
(Figure 4, Item 11).
