TM 5-3805-293-23-5
FIELD MAINTENANCE
-
CENTERSHIFT BAR REPLACEMENT
0
299
AE01-
Removal, Cleaning and Inspection, Installation
INITIAL SETUP
References
Tools and Special Tools
0
0
Tool Kit, General Mechanic's
0
(WP 0354, Item 83)
0
Equipment Condition
0
Hoist, Lever (WP 0354, Item 43)
0
Machine parked
Sling, Nylon (8 ft) (WP 0354, Item 65)
0
(TM 5-3805-293-10)
0
Socket, Impact Socket, 3/4" Dr, 6 pt, 36 mm
Articulation lock pin installed
(S0691) (WP 0354, Item 85)
0
(TM 5-3805-293-10)
0
Socket, Impact Socket, 3/4" Dr, 6 pt, 46 mm
Centershift lock pin retracted
(S0694) (WP 0354, Item 85)
0
(TM 5-3805-293-10)
0
Socket, Impact Wrench, 3/4" Dr, 6 pt, 1-7/16"
Centershift bar centered
(S0975) (WP 0354, Item 85)
0
(TM 5-3805-293-10)
0
Lifting device (200-lb [91-kg]
minimum capacity)
Drawings Required
0
0
TM 5-3805-293-24P, Figure 157
Materials/Parts
0
0
Rag, Wiping (WP 0355, Item 25)
Estimated Time to Complete
0
0
2.0 Hr
Personnel Required
0
0
Two
0
REMOVAL
000299
1. Attach sling (Figure 1, Item 1) and chain hoist (Figure 1, Item 2) to blade lift arms (Figure 1, Item 3).

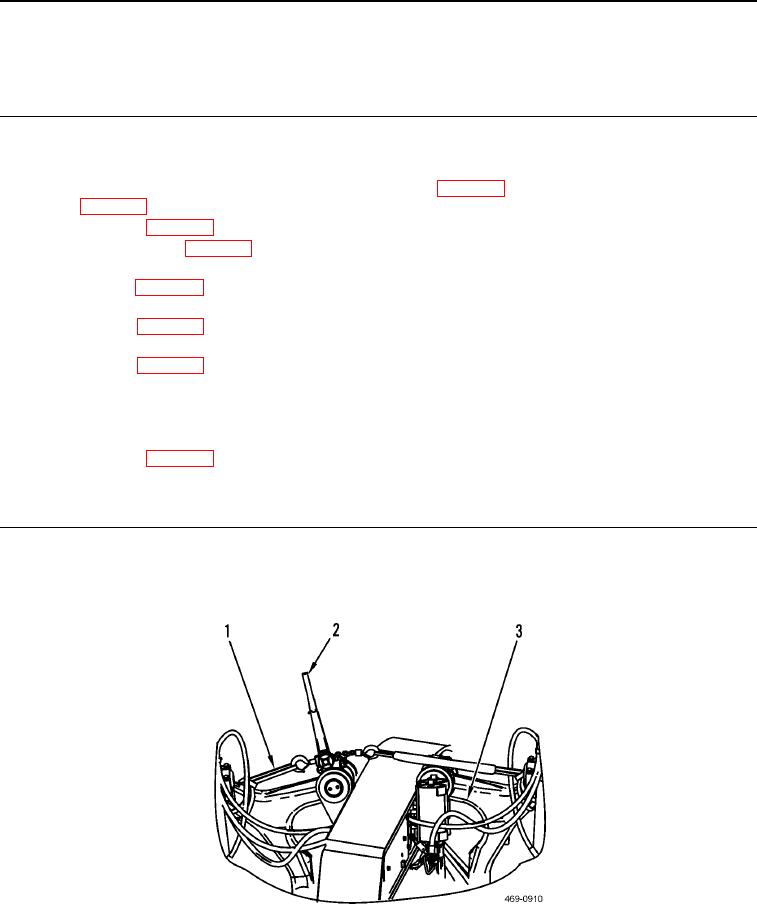

Figure 1. Blade Lift Sling.
0299
