INSTALLATION
000299
1. Attach sling and lifting device to centershift bar.
WARN I N G
Use extreme caution when handling heavy parts. Provide adequate support and use
assistance during procedure. Ensure any lifting device used is in good condition and of
suitable load capacity. Keep clear of heavy parts supported only by lifting device. Failure to
follow this warning may cause injury or death to personnel.
N OT E
Centershift bar weighs 170 lb (77 kg).
2. Using lifting device, install centershift bar on machine.
3. Install ball stud (Figure 6, Item 2), lock (Figure 6, Item 5), two washers (Figure 6, Item 3), and bolts (Figure 6,
Item 4) on left centershift bar (Figure 6, Item 1).

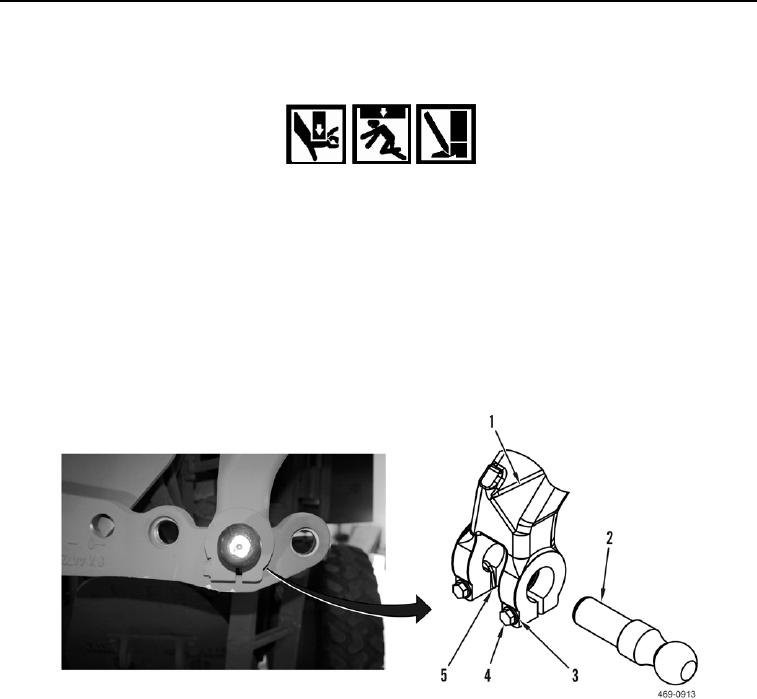

Figure 6. Left Blade Lift Arm Ball Stud.
