TM 5-3805-293-23-5
0298
REMOVAL
000298
N OT E
The procedure for rear cab mount replacement is identical for left and right rear cab
mounts. Right rear cab mount is shown in this procedure.
1. Remove bolt (Figure 1, Item 3), washer (Figure 1, Item 2), and bottom isolator (Figure 1, Item 4) from front cab
mount (Figure 1, Item 1).

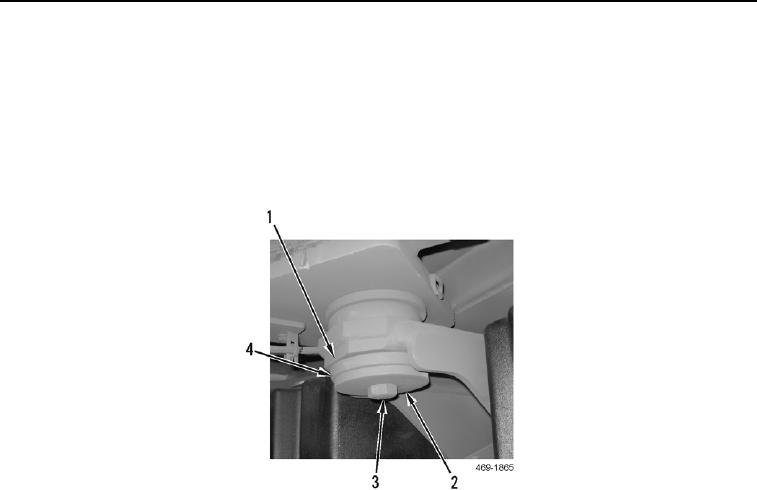

Figure 1. Front Cab Mount.
0298
