INSTALLATION CONTINUED
13. Install gasket (Figure 28, Item 6) and plate (Figure 28, Item 5) on blower motor (Figure 28, Item 4).
14. Install two wires (Figure 28, Item 3), new lockwashers (Figure 28, Item 2), and nuts (Figure 28, Item 1) on
blower motor (Figure 28, Item 4).
N OT E
Install all wires as tagged during removal.

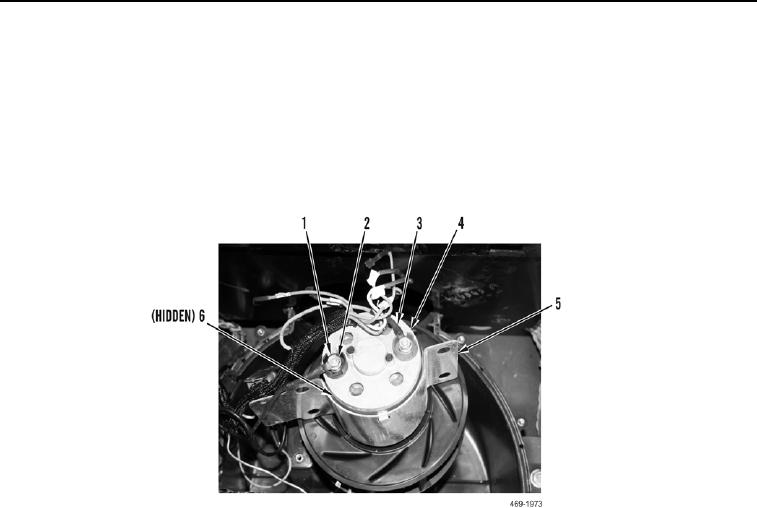

Figure 28. Blower Motor Wiring.
