INSTALLATION CONTINUED
000294
N OT E
Install wiring harness as noted during removal.
Install hoses as noted during removal.
4. Connect two coolant hoses (Figure 24, Item 2) and install two clamps (Figure 24, Item 1) on fitting (Figure 24,
Item 3).

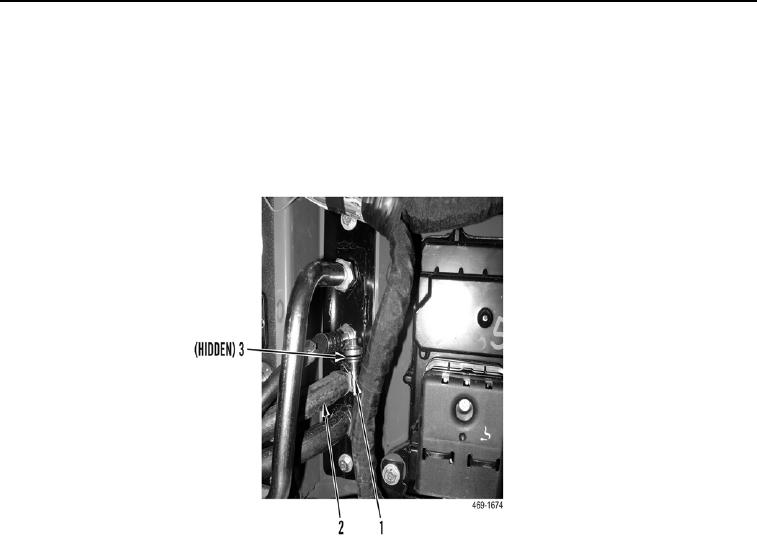

Figure 24. Hoses at Bulkhead.
