TM 5-3805-293-23-5
0294
INSTALLATION CONTINUED
27. Position wiring harness (Figure 34, Item 4) on bracket (Figure 34, Item 6).
28. Install grommet (Figure 34, Item 5) on bracket (Figure 34, Item 6).
29. Install cover (Figure 34, Item 2) and six screws (Figure 34, Item 1) on housing (Figure 34, Item 3).
30. Connect wiring harness (Figure 34, Item 4) to actuator (Figure 34, Item 7).

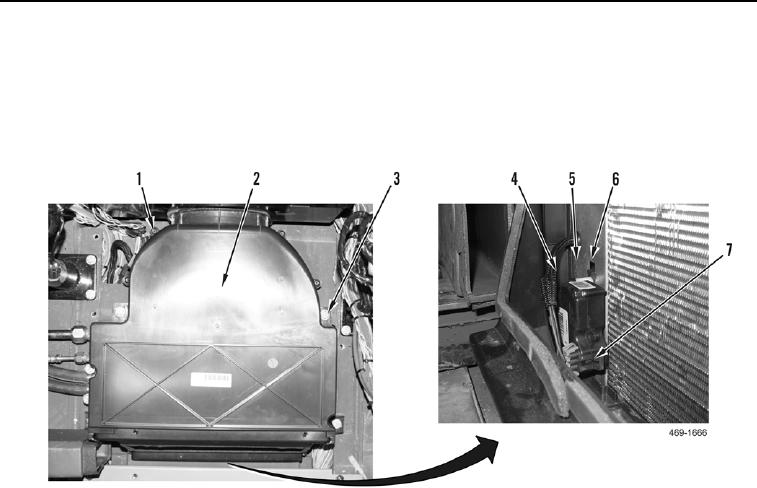

Figure 34. Plenum Cover.
0294
