INSTALLATION CONTINUED
3. Attach sling and lifting device to drawbar (Figure 6, Item 1).
WARN I N G
Use extreme caution when handling heavy parts. Provide adequate support and use
assistance during procedure. Ensure that any lifting device used is in good condition and
of suitable load capacity. Keep clear of heavy parts supported only by lifting device.
Failure to follow this warning may result in injury or death to personnel.
N OT E
Each drawbar weighs 500 lb (225 kg).
4. Using lifting device, position drawbar on machine.
5. Install drawbar (Figure 6, Item 1), collar (Figure 6, Item 5), bolt (Figure 6, Item 2), washer (Figure 6, Item 3),
and new locknut (Figure 6, Item 4) on drawbar shaft (Figure 6, Item 6).

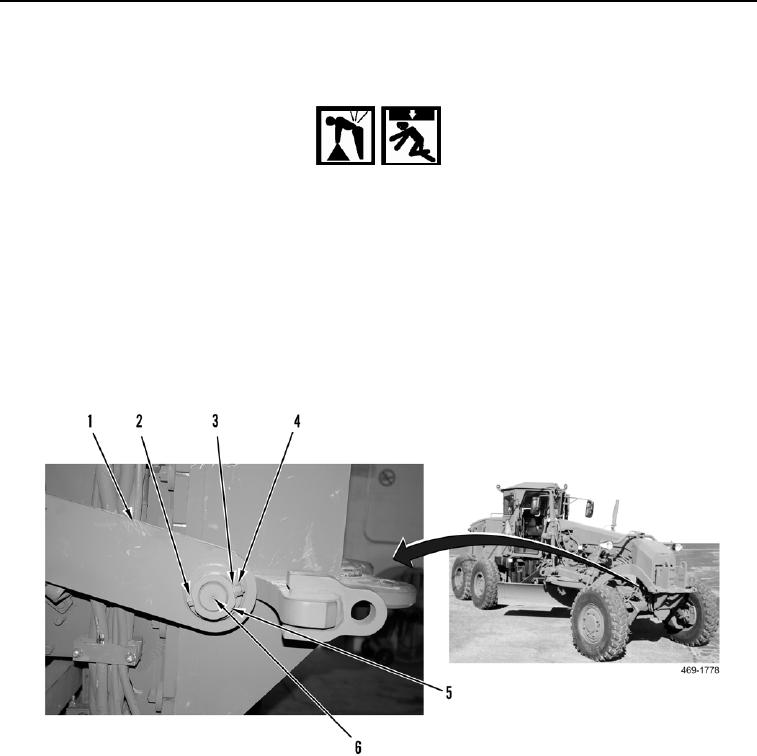

Figure 6. Drawbar and Collar.
