TM 5-3805-293-23-5
0325
REMOVAL CONTINUED
WARN I N G
Use extreme caution when handling heavy parts. Provide adequate support and use
assistance during procedure. Ensure that any lifting device used is in good condition and
of suitable load capacity. Keep clear of heavy parts supported only by lifting device.
Failure to follow this warning may result in injury or death to personnel.
N OT E
Scarifier weighs 500 lb (225 kg).
Perform the following step only if necessary.

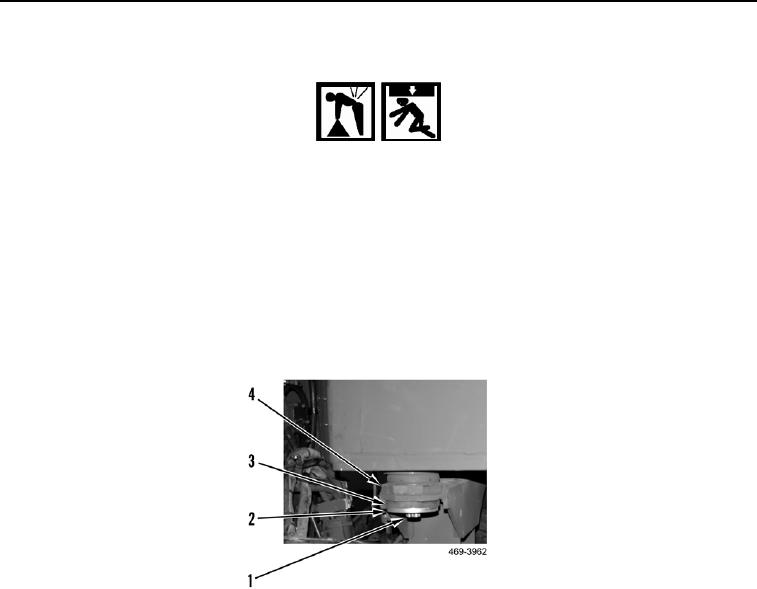

7. Remove two collars (Figure 3, Item 1) and drawbar shaft (Figure 3, Item 2) from front bracket (Figure 3,
Item 3).
Figure 3. Drawbar Shaft.
0325
