REMOVAL
000323
WARN I N G
To prevent injury to personnel, wear protective eye covering and gloves.
Use extreme caution when handling heavy parts. Provide adequate support and use
assistance during procedure.
Failure to follow these warnings may result in injury or death to personnel.
1. Remove two bolts (Figure 1, Item 4), retainer (Figure 1, Item 3), and pin (Figure 1, Item 2) from scarifier
cylinder (Figure 1, Item 1). Position scarifier cylinder aside.

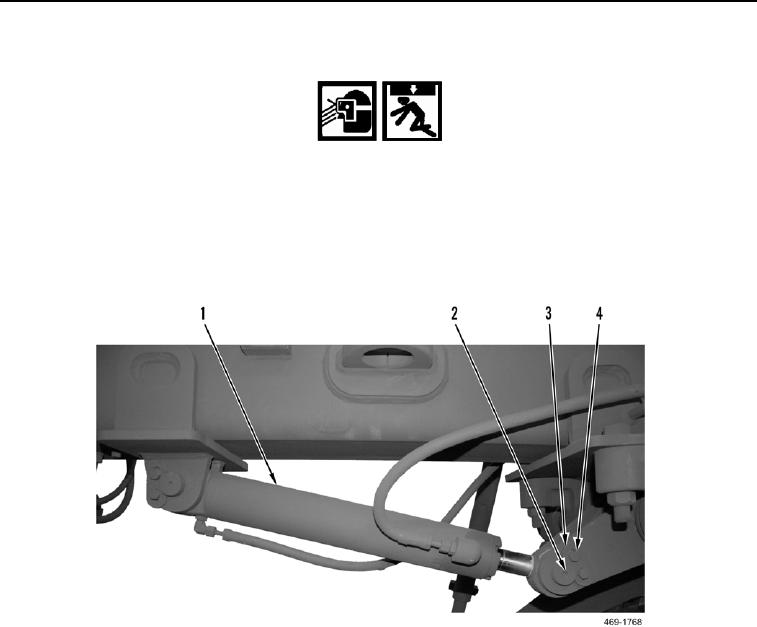

Figure 1. Scarifier Cylinder.
