Maintenance Manual For Motorized Road Grader Model 120M - 5
Page Navigation
505
506
507
508
509
510
511
512
513
514
515
TM
5-3805-293-23-5
0322
ASSEMBLY
CONTINUED
7.
Install
eight
new
O-rings
(Figure
15,
Item
3)
and
hydraulic
fittings
(
Figure
15
,
Item
2) on circle
drive
swivel
(
Figure
15
,
Item
1).

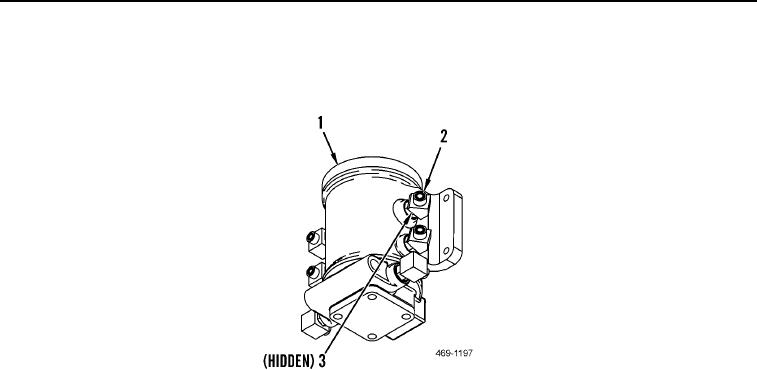

Figure
15.
Hydraulic
Fitting.
0322
END
OF
TASK
0322-11
