TM 5-3805-293-23-5
0313
REMOVAL CONTINUED
10. Remove two clamps (Figure 4, Item 1) from centershift cylinder (Figure 4, Item 2).
11. Remove two bolts (Figure 4, Item 7), washers (Figure 4, Item 6), cap (Figure 4, Item 5), shim (Figure 4, Item 4),
and cap insert (Figure 4, Item 3) from centershift cylinder (Figure 4, Item 2).
WARN I N G
Use extreme caution when handling heavy parts. Provide adequate support and use
assistance during procedure. Ensure any lifting device used is in good condition and of
suitable load capacity. Keep clear of heavy parts supported only by lifting device. Failure
to follow this warning may cause injury or death to personnel.
N OT E
Centershift cylinder weighs 120 lb (54 kg).
12. Using lifting device, remove centershift cylinder (Figure 4, Item 2) from circle assembly (Figure 4, Item 8).

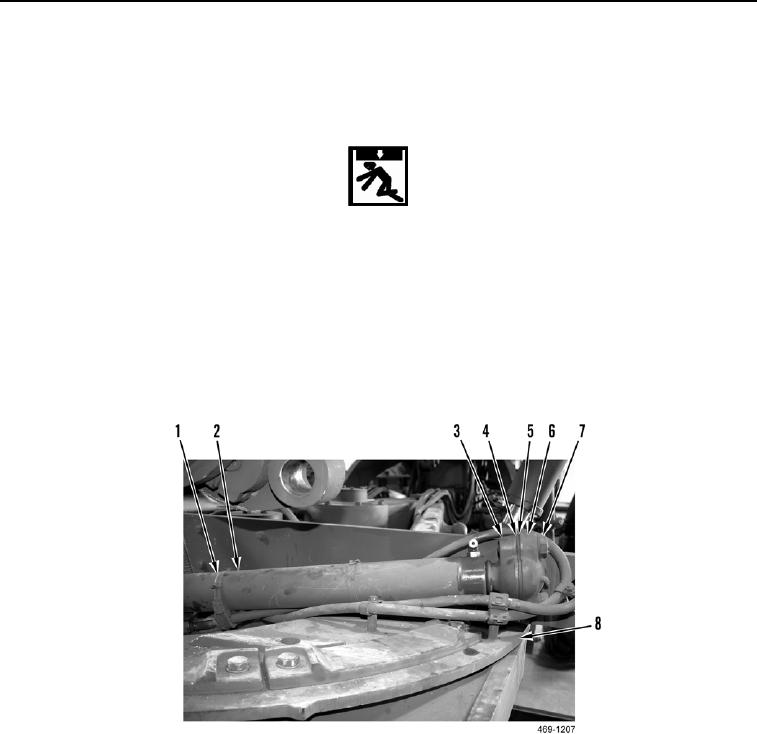

Figure 4. Lower Centershift Cylinder Cap.
0313
END OF TASK
