TM
5-3805-293-23-5
0297
INSTALLATION
CONTINUED
9.
Connect
harness connector
(Figure
7,
Item
2) to
left
front
bulkhead
(Figure
7,
Item
1)
and
tighten
bolt
(Figure
7,
Item
3).

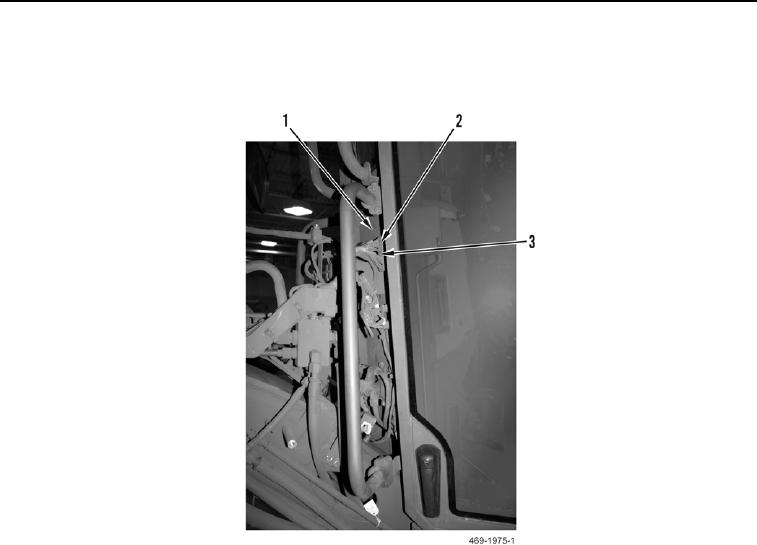

Figure 7.
Left
Front Bulkhead.
0297
0297-8
