TM 5-3805-293-23-5
0309
DISASSEMBLY
000309
1. Loosen head (Figure 5, Item 1) and remove cylinder rod (Figure 5, Item 13) from cylinder housing (Figure 5,
Item 7).
2. Remove bolt (Figure 5, Item 9) and washer (Figure 5, Item 10) from cylinder rod (Figure 5, Item 13).
3. Remove piston (Figure 5, Item 8) and head (Figure 5, Item 1) from cylinder rod (Figure 5, Item 13).
4. Remove wear ring (Figure 5, Item 12) and seal (Figure 5, Item 11) from piston (Figure 5, Item 8). Discard seal
and wear ring.
5. Remove O-ring (Figure 5, Item 3), backup ring (Figure 5, Item 14), wiper seal (Figure 5, Item 2), U-cup seal
(Figure 5, Item 4), buffer seal (Figure 5, Item 5), and wear ring (Figure 5, Item 6) from head (Figure 5, Item 1).
Discard O-ring, backup ring, wiper seal, U-cup seal, buffer seal, and wear ring.

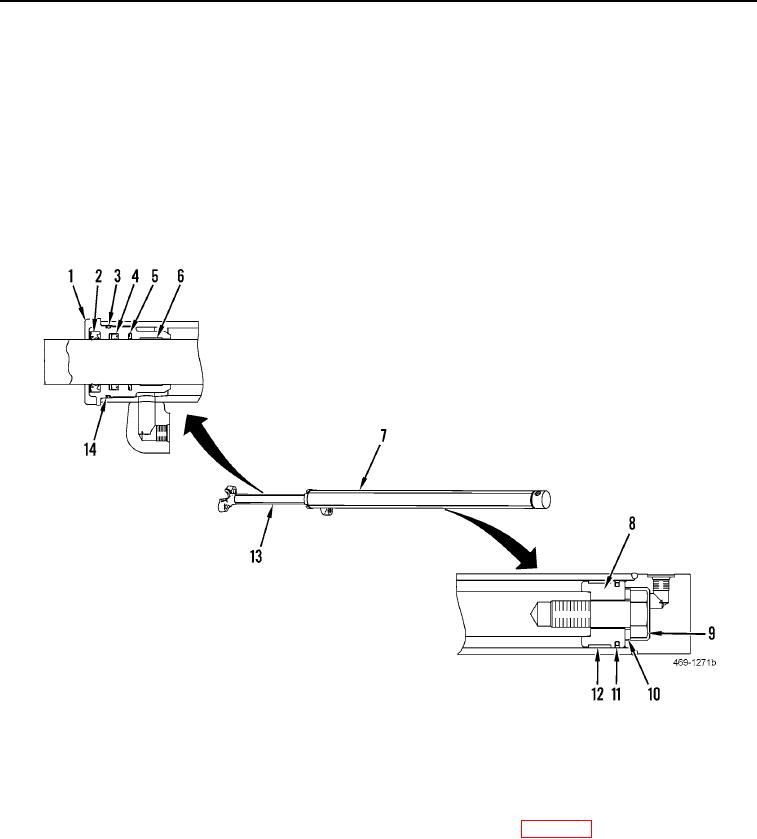

Figure 5. Cylinder.
0309
END OF TASK
CLEANING AND INSPECTION
000309
Clean and inspect all parts IAW Mechanical General Maintenance Instructions (WP 0346).
END OF TASK
