TM 5-3805-293-23-5
0305
REMOVAL CONTINUED
N OT E
Top wearstrips will fall when blade is removed from circle assembly.
7. Using chain hoist, pull blade halfway out from circle assembly.
C AU T I O N
Route sling between cylinder rod and moldboard. Failure to follow this caution may result
in damage to equipment.

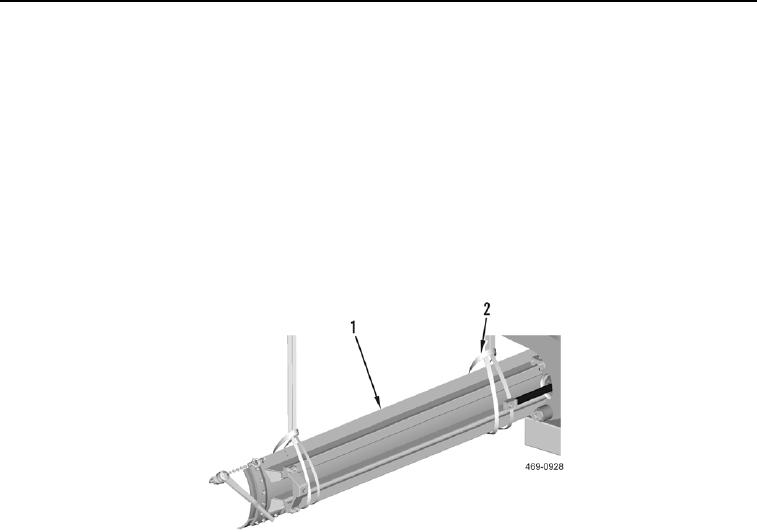

8. Attach second sling (Figure 5, Item 2) and lifting device to blade (Figure 5, Item 1).
Figure 5. Sling Attachment.
0305
