TM 5-3805-293-23-5
0296
REMOVAL CONTINUED
14. Remove A/C hose (Figure 7, Item 4) and O-ring (Figure 7, Item 5) from receiver/dryer (Figure 7, Item 6).
Discard O-ring.
15. Remove A/C hose (Figure 7, Item 1) and O-ring (Figure 7, Item 3) from accumulator (Figure 7, Item 2). Discard
O-ring.

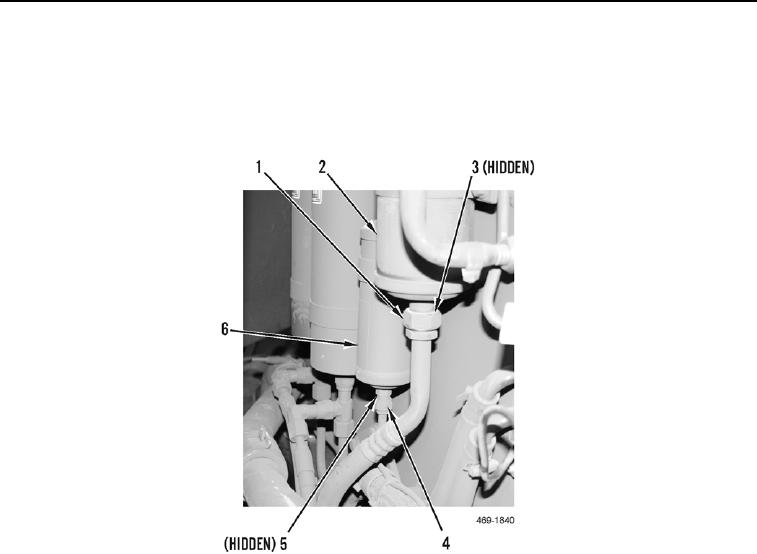

Figure 7. A/C Hose Connections at Cab.
0296
