REMOVAL CONTINUED
11. Remove bolt (Figure 6, Item 4) and washers (Figure 6, Item 3) from bracket (Figure 6, Item 5).
12. Remove bolt (Figure 6, Item 6), washer (Figure 6, Item 7), clamp (Figure 6, Item 8), and bracket (Figure 6,
Item 5) from machine.
13. Remove two locknuts (Figure 6, Item 9), washers (Figure 6, Item 10), plate (Figure 6, Item 2), and inserts
(Figure 6, Item 11) from hose bundle (Figure 6, Item 1). Discard locknuts.

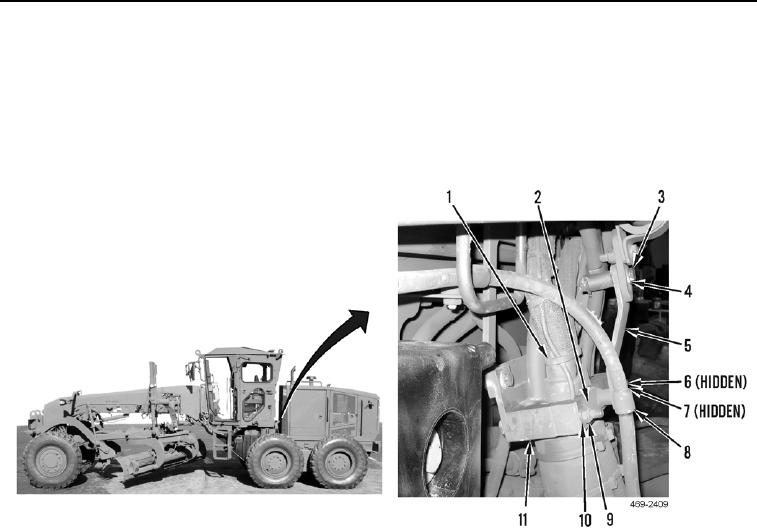

Figure 6. Hose Bundle.
