Maintenance Manual For Motorized Road Grader Model 120M - 5 Page Navigation
239

TM 5-3805-293-23-5

0296

REMOVAL CONTINUED

7. Remove two A/C hoses (Figure 3, Item 1) and O-rings (Figure 3, Item 2) from A/C compressor (Figure 3,

Item 3). Discard O-rings.

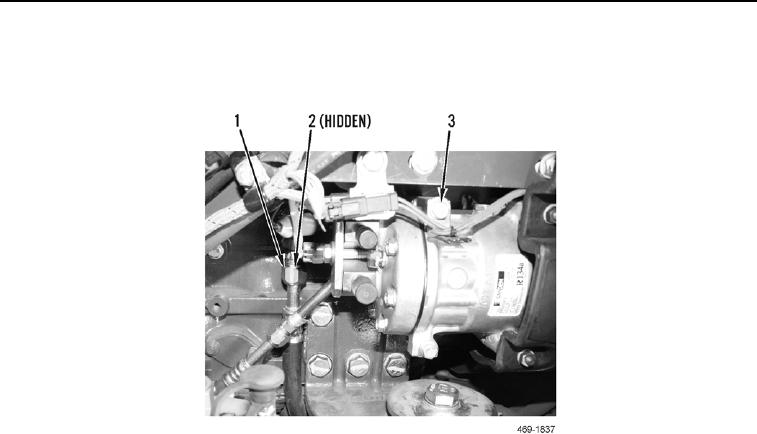

Figure 3. A/C Hose Connections at Compressor.

0296

0296-4
