TM 5-3805-293-23-5
0284
DISASSEMBLY CONTINUED
24. Remove two slide latches (Figure 19, Item 2), plastic washers (Figure 19, Item 1), springs (Figure 19, Item 4)
and connecting rods (Figure 19, Item 5) from seat slide frame (Figure 19, Item 3).

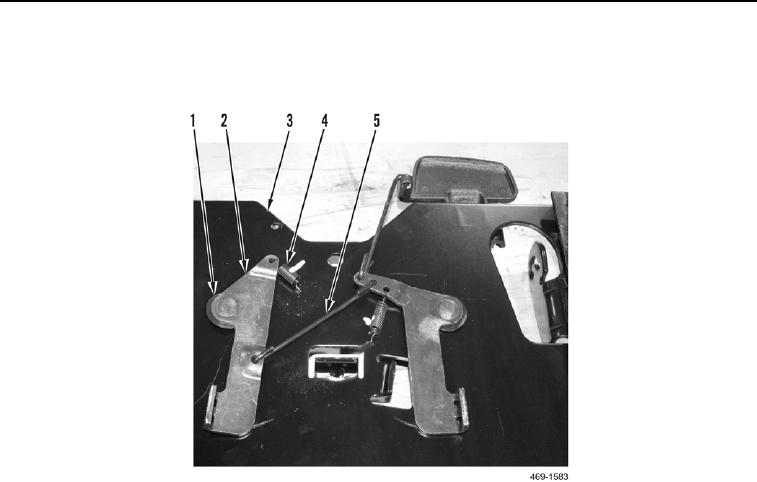

Figure 19. Slide Latch.
0284
