TM 5-3805-293-23-5
0284
DISASSEMBLY CONTINUED
8. Remove two screws (Figure 10, Item 1) and washers (Figure 10, Item 2) from seat back frame (Figure 10,
Item 4).
9. Remove seat back cushion (Figure 10, Item 3) from seat back frame (Figure 10, Item 4).

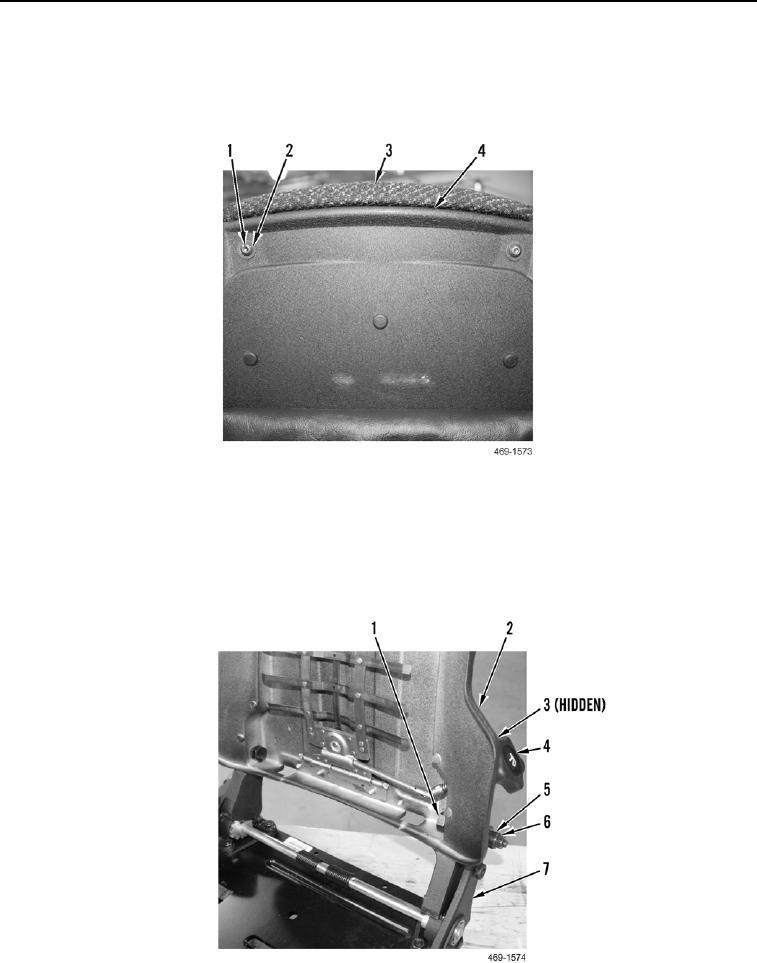

Figure 10. Seat Back Cushion.
0284
10. Remove two nuts (Figure 11, Item 6), spacers (Figure 11, Item 5), bolts (Figure 11, Item 1), and seat back
frame (Figure 11, Item 2) from recliner brackets (Figure 11, Item 7).
11. Loosen set screw (Figure 11, Item 3) and remove knob (Figure 11, Item 4) from seat back frame (Figure 11,
Item 2).
Figure 11. Seat Back Frame.
0284
