TM 5-3805-293-23-5
0284
DISASSEMBLY CONTINUED
15. Remove two cotter pins (Figure 14, Item 5), four washers (Figure 14, Item 4), and two pins (Figure 14, Item 3)
from recliner latch pull rod (Figure 14, Item 1).
16. Remove recliner latch pull rod (Figure 14, Item 1) from recliner latch (Figure 14, Item 6) and recliner handle
(Figure 14, Item 2).

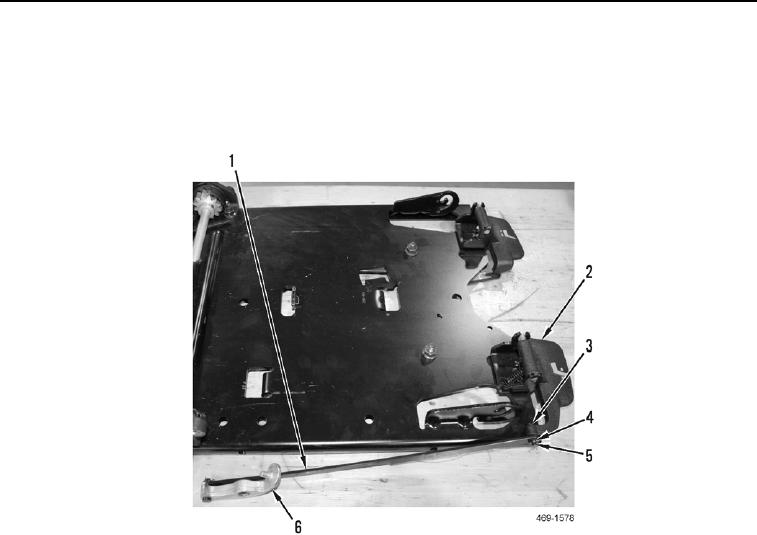

Figure 14. Recliner Latch Pullrod.
0284
