CONNECTING LEFT DOOR WIPER MOTOR AND WASHER HOSE
000349
1. Attach sling and lifting device on door (Figure 26, Item 1).
WARN I N G
Use extreme caution when handling heavy parts. Provide adequate support and use
assistance during procedure. Ensure any lifting device used is in good condition and of
suitable load capacity. Keep clear of heavy parts supported only by lifting device. Failure
to follow this warning may cause injury or death to personnel.
N OT E
Door weighs approximately 105 lb (48 kg).
2. Using lifting device, install door (Figure 26, Item 1) on machine.
3. Remove lifting device and sling from door (Figure 26, Item 1).
4. Close door (Figure 26, Item 1) (TM 5-3805-293-10).
5. Connect left door wiper electrical connector (Figure 26, Item 3) to connector (Figure 26, Item 2).
6. Connect left door washer fluid hose (Figure 26, Item 5) to fitting (Figure 26, Item 4).

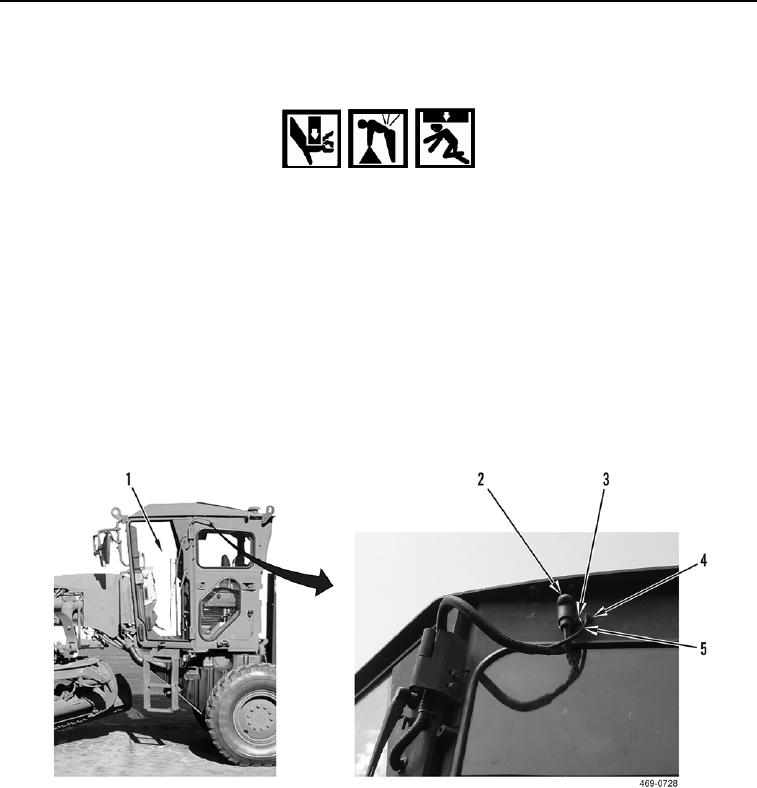

Figure 26. Left Door and Wiper Connections.
0349
END OF TASK
