COOLANT HEATER INSTALLATION CONTINUED
000331
74. Attach suitable lifting device to guard (Figure 57, Item 4).
WARN I N G
Use extreme caution when handling heavy parts. Provide adequate support and use
assistance during procedure. Failure to follow this warning may result in injury or death to
personnel.
N OT E
Guard weighs 70 lb (32 kg).
75. With assistance, install two spacers (Figure 57, Item 3) and guard (Figure 57, Item 4) on machine.
76. Install four washers (Figure 57, Item 6) and bolts (Figure 57, Item 5) on guard (Figure 57, Item 4).
77. Install two washers (Figure 57, Item 2) and bolts (Figure 57, Item 1) on guard (Figure 57, Item 4).

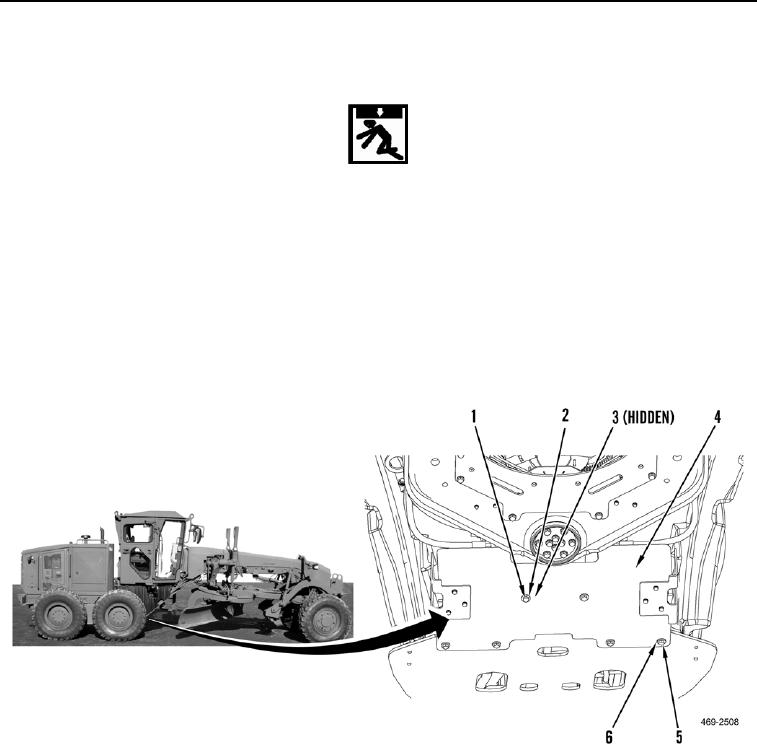

Figure 57. Crossover Tube Guard.
