TM 5-3805-293-23-5
0331
COOLANT HEATER INSTALLATION CONTINUED
000331
14. Remove four nuts (Figure 35, Item 1), bolts (Figure 35, Item 2), and eight washers (Figure 35, Item 3) from
block heater mounting bracket (Figure 35, Item 4).

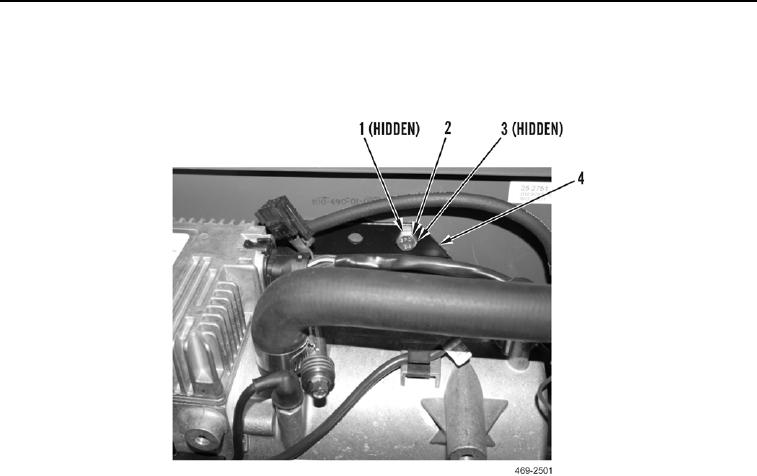

Figure 35. Block Heater Mounting Bracket.
0331
