TM 5-3805-293-23-5
0331
COOLANT HEATER INSTALLATION CONTINUED
000331
1. Remove cotter pin (Figure 30, Item 3), washer (Figure 30, Item 2) and rod (Figure 30, Item 1) from left front
engine enclosure side access panel (Figure 30, Item 4). Discard cotter pin.
2. Remove four bolts (Figure 30, Item 6), washers (Figure 30, Item 5) and left front engine enclosure side access
panel (Figure 30, Item 4) from engine enclosure (Figure 30, Item 11).
3. Loosen brake line (Figure 30, Item 8) from fitting (Figure 30, Item 7).
4. Loosen brake line (Figure 30, Item 10) from fitting (Figure 30, Item 9).

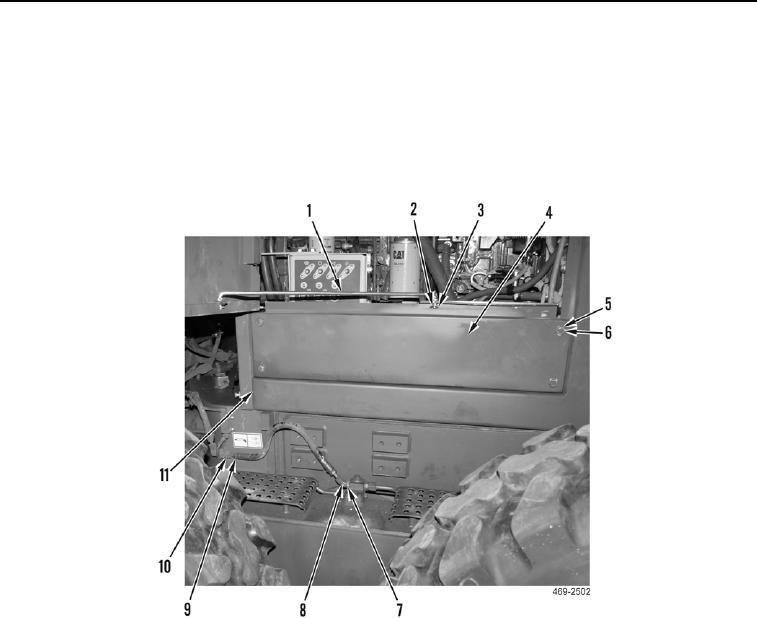

Figure 30. Left Front Engine Enclosure Side Access Panel.
