TM 5-3805-293-23-5
0331
COOLANT HEATER INSTALLATION CONTINUED
000331
N OT E
Clean thread holes to remove CARC paint prior to installation.
8. Install bracket (Figure 32, Item 1), four washers (Figure 32, Item 6), and bolts (Figure 32, Item 7) on rear frame
(Figure 32, Item 2).
9. Install bracket (Figure 32, Item 3), four washers (Figure 32, Item 4), and bolts (Figure 32, Item 5) on rear frame
(Figure 32, Item 2).

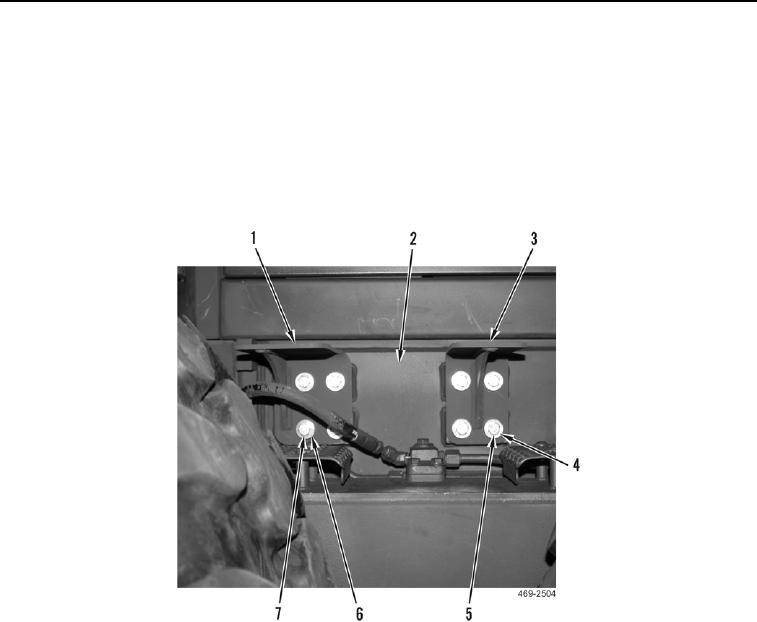

Figure 32. Block Heater Box Brackets.
0331
