BATTERY CABLE INSTALLATION CONTINUED
000331
N OT E
Clean thread holes to remove CARC paint prior to installation.
14. Install eight spacers (Figure 14, Item 12), 16 clamps (Figure 14, Item 2), eight washers (Figure 14, Item 4),
studs (Figure 14, Item 6) and washers (Figure 14, Item 5) on two battery cables (Figure 14, Item 1) and engine
enclosure (Figure 14, Item 3).
15. Install spacer (Figure 14, Item 7), clamp (Figure 14, Item 11), washer (Figure 14, Item 8), stud (Figure 14,
Item 10) and washer (Figure 14, Item 9) on battery cable (Figure 14, Item 1) and engine enclosure (Figure 14,
Item 3).

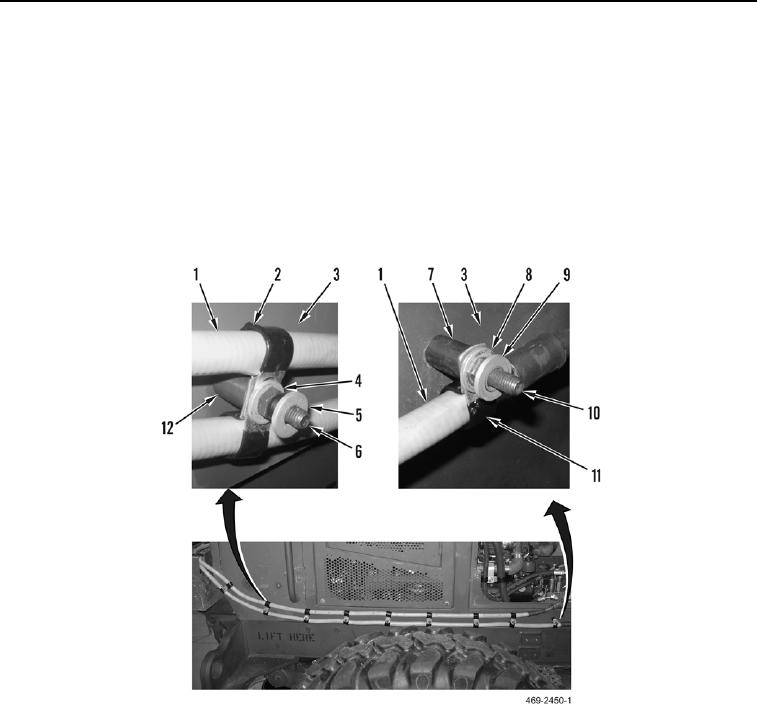

Figure 14. External Battery Cable Clamp Connections.
