TM 5-3805-293-23-5
0331
BATTERY CABLE INSTALLATION CONTINUED
000331
1. Remove cotter pin (Figure 10, Item 4), washer (Figure 10, Item 3) and rod (Figure 10, Item 2) from right front
engine enclosure side access panel (Figure 10, Item 5). Discard cotter pin.
2. Remove four bolts (Figure 10, Item 6), washers (Figure 10, Item 7) and right front engine enclosure side
access panel (Figure 10, Item 5) from engine enclosure (Figure 10, Item 1).

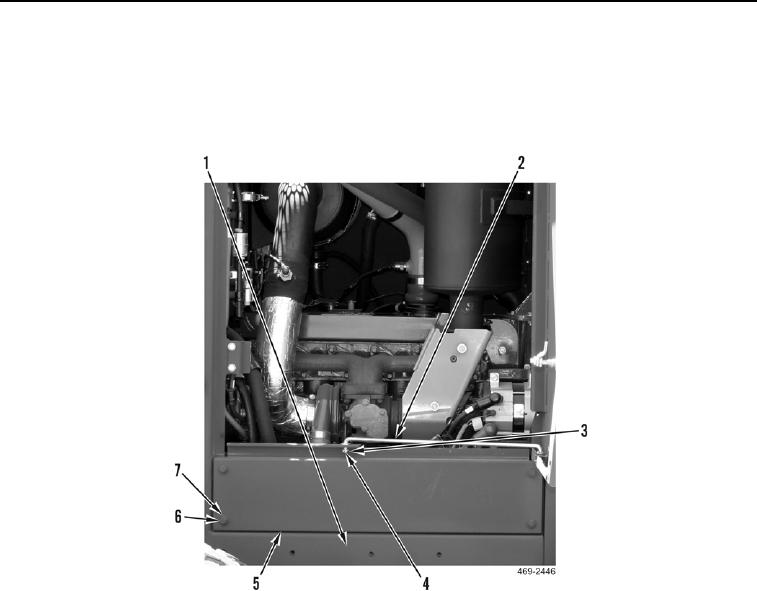

Figure 10. Right Front Engine Enclosure Side Access Panel.
0331
