TM 5-3805-293-23-5
0331
BATTERY BOX INSTALLATION CONTINUED
000331
WARN I N G
Use extreme caution when handling heavy parts. Provide adequate support and use
assistance during procedure. Failure to follow this warning may result in injury or death to
personnel.
N OT E
Battery lid assembly weighs 50 lb (23 kg).
1. With assistance, release two latches (Figure 2, Item 1) and remove battery lid assembly (Figure 2, Item 2) from
support assembly (Figure 2, Item 3).

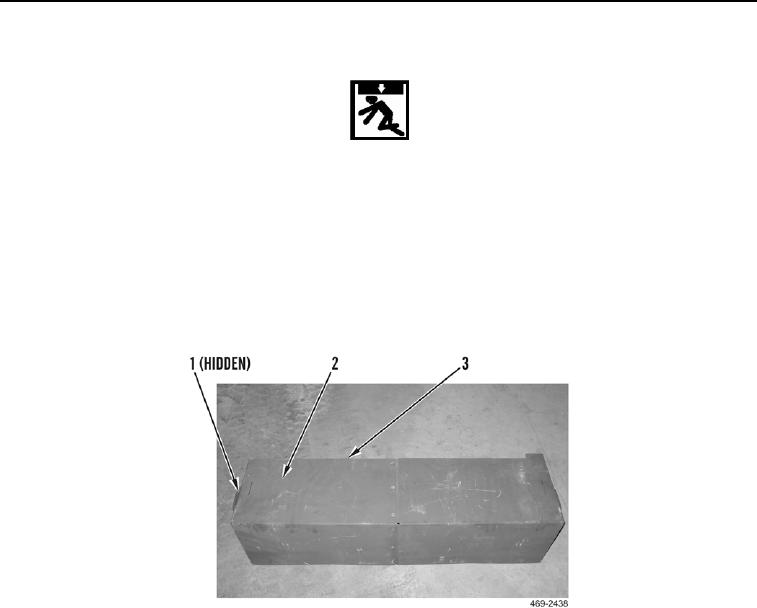

Figure 2. Battery Lid Assembly.
0331
