WARN I N G
Diesel fuel is combustible and an irritant. Skn and eye protection is required. Ensure work
i
area is well ventilated.
Keep away from open flame and other ignition sources.
When drain plug is removed, fuel will come out of fuel tank under pressure.
When servicing this machine, performing mainenance, or disposing of materials such as
t
engine coolant, hydraulic fluid, lubricants, battery acids or batteries, and CARC paint,
consult your unit/local hazardous waste disposal center or safety office for local regulatory
guidance. If further information is needed, please contact The Army Environmental Hotline
at 1-800-872-3845.
Failure to follow these warnings may result in injury or death to personnel.
N OT E
Tag and mark all parts removed during the arctic kit installation that are not reused.
INSTALLATION
000331
1. Position drain pan under fuel tank drain plug (Figure 1, Item 1).
WARN I N G
Do not remove adapter from fuel tank when removing drain plug. Flow of fuel from fuel
tank will not be controllable if adapter is removed. Failure to follow this warning may result
in injury to personnel.
2. Slowly open fuel tank drain plug (Figure 1, Item 1) to allow fuel to drain.
3. Tighten fuel tank drain plug (Figure 1, Item 1).

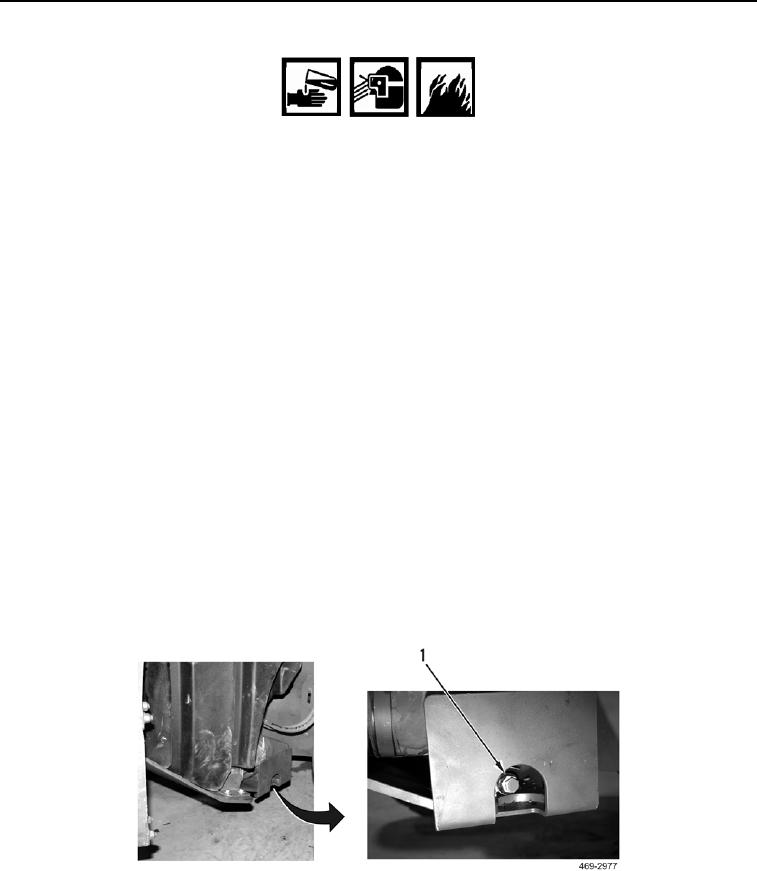

Figure 1. Fuel Tank Drain Plug.
0331
END OF TASK
