Maintenance Manual For Motorized Road Grader Model 120M - 5
Page Navigation
500
501
502
503
504
505
506
507
508
509
510
TM
5-3805-293-23-5
0322
DISASSEMBLY
CONTINUED
6.
Remove
two
seals
(Figure
8,
Item
1)
from
rotor
(Figure
8,
Item
2).
Discard seals.

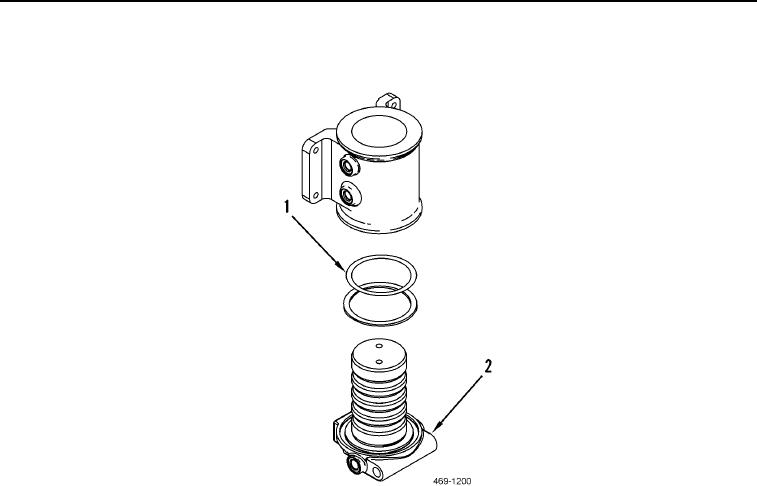

Figure 8. Rotor Seals.
0322
0322-6
