REMOVAL CONTINUED
000316
3. Remove two nuts (Figure 2, Item 12), washers (Figure 2, Item 13), bolts (Figure 2, Item 11), and four clamps
(Figure 2, Item 10) from hoses (Figure 2, Items 4 and 8).
4. Remove two bolts (Figure 2, Item 3), washers (Figure 2, Item 2), nuts (Figure 2, Item 14), and four clamps (Fig-
ure 2, Item 1) from hoses (Figure 2, Items 4 and 8).
5. Disconnect hose (Figure 2, Item 4) from swivel (Figure 2, Item 7) and remove and discard O-ring (Figure 2,
Item 5).
6. Disconnect hose (Figure 2, Item 8) from swivel (Figure 2, Item 7) and remove and discard O-ring (Figure 2,
Item 6).

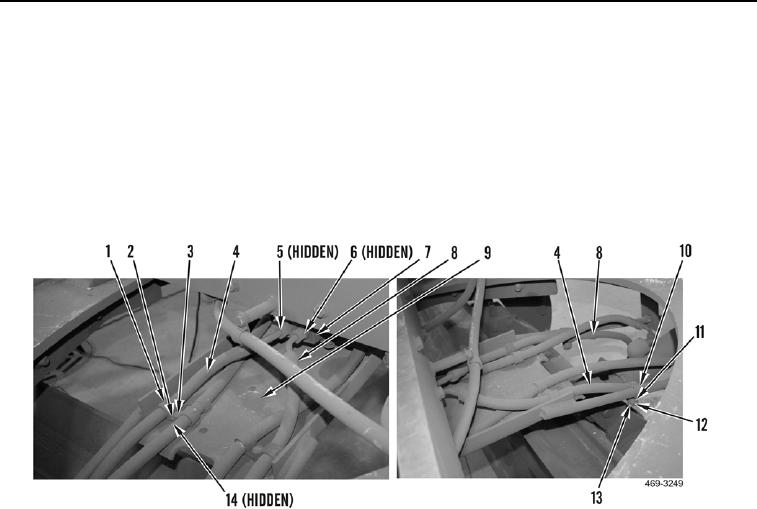

Figure 2. Sideshift Lower Clamps.
