REMOVAL
000316
WARN I N G
Hydraulic oil is very slippery. Immediately wipe up any spills. Failure to follow this warning
may result in injury to personnel.
N OT E
Tag and mark hoses to aid in installation.
Cap and plug all lines and fittingsat removal to prevent contamination.
1. Disconnect hose (Figure 1, Item 2) from sideshift cylinder (Figure 1, Item 1) and remove and discard O-ring
(Figure 1, Item 5).
2. Disconnect hose (Figure 1, Item 3) from sideshift cylinder (Figure 1, Item 1) and remove and discard O-ring
(Figure 1, Item 4).

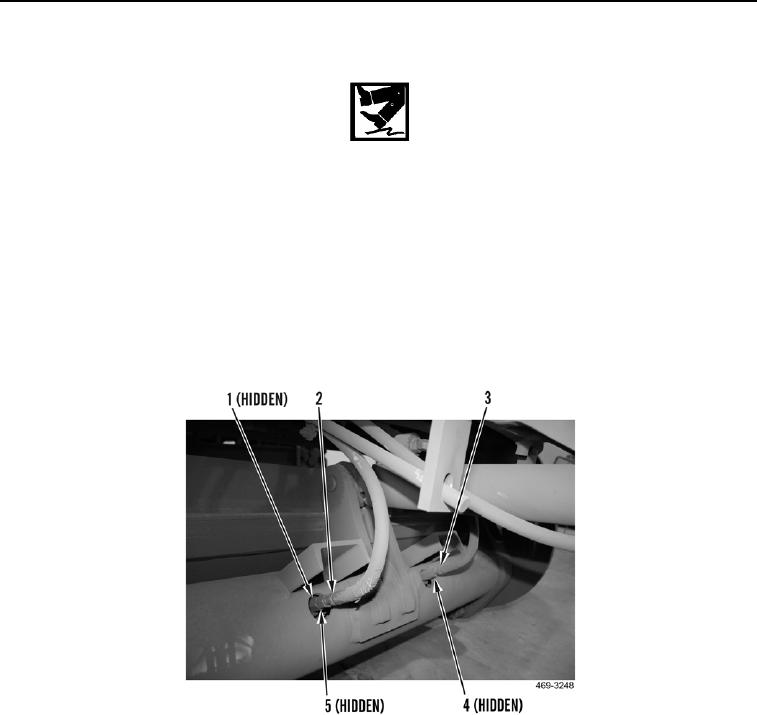

Figure 1. Sideshift Cylinder.
