REMOVAL CONTINUED
000314
6. Remove clamp (Figure 2, Item 3) and hose block (Figure 2, Item 4) from cylinder (Figure 2, Item 1) and hose
(Figure 2, Item 10).
7. Disconnect hose (Figure 2, Item 10) from cylinder (Figure 2, Item 1) and remove and discard O-ring (Figure 2,
Item 2).
8. Remove bolt (Figure 2, Item 7), washer (Figure 2, Item 8), and clamp (Figure 2, Item 6) from hose (Figure 2,
Item 9) and stanchion (Figure 2, Item 5).
9. Remove two bolts (Figure 2, Item 12), washers (Figure 2, Item 11), and clamps (Figure 2, Item 13) from hose
(Figure 2, Item 10) and stanchions (Figure 2, Items 14 and 15).

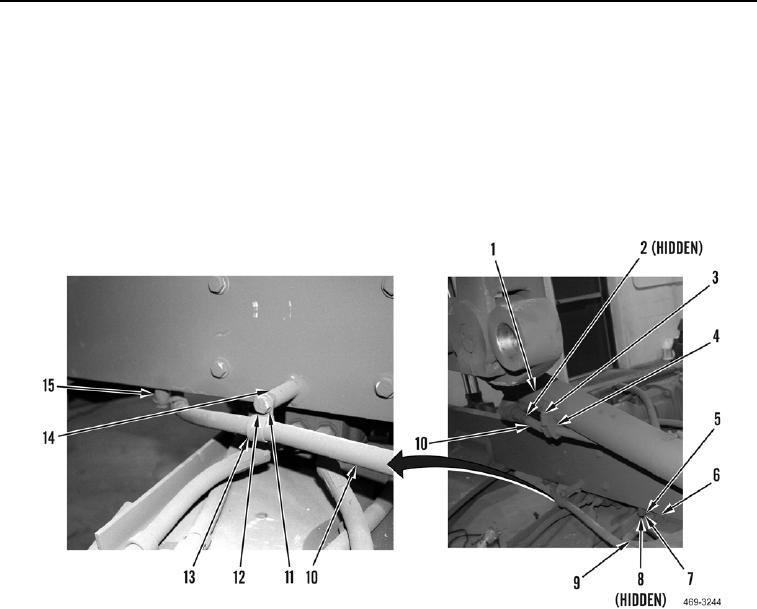

Figure 2. Centershift Cylinder Base.
