INSTALLATION CONTINUED
000312
17. Install spacer (Figure 11, Item 16), two clamps (Figure 11, Item 15), washer (Figure 11, Item 13), and bolt
(Figure 11, Item 14) on hose (Figure 11, Item 2) and left-side machine (Figure 11, Item 5).
18. Install spacer (Figure 11, Item 11), two clamps (Figure 11, Item 9), washer (Figure 11, Item 10), and bolt (Figure
11, Item 12) on hose (Figure 11, Item 2) and left-side machine (Figure 11, Item 5).
19. Install clamp (Figure 11, Item 1), washer (Figure 11, Item 3), and bolt (Figure 11, Item 4) on hose (Figure 11,
Item 2) and left-side machine (Figure 11, Item 5).
20. Install clamp (Figure 11, Item 8), washer (Figure 11, Item 6), and bolt (Figure 11, Item 7) on hose (Figure 11,
Item 2) and left-side machine (Figure 11, Item 5).

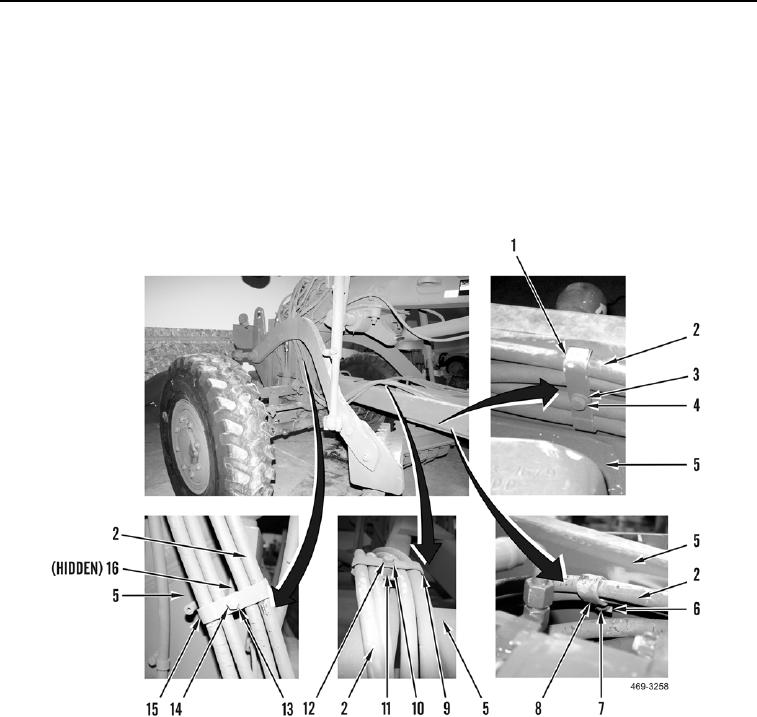

Figure 11. Left-Side Hose Clamps.
