INSTALLATION CONTINUED
000312
13. Install clamp (Figure 10, Item 13), washer (Figure 10, Item 12), and bolt (Figure 10, Item 11) on hose
(Figure 10, Item 5) and right-side machine (Figure 10, Item 6).
14. Install spacer (Figure 10, Item 10), two clamps (Figure 10, Item 9), washer (Figure 10, Item 8) and bolt
(Figure 10, Item 7) on hose (Figure 10, Item 5) and right-side machine (Figure 10, Item 6).
15. Install spacer (Figure 10, Item 3), two clamps (Figure 10, Item 4), washer (Figure 10, Item 2) and bolt
(Figure 10, Item 1) on hose (Figure 10, Item 5) and right-side machine (Figure 10, Item 6).
16. Install clamp (Figure 10, Item 16), washer (Figure 10, Item 15), and bolt (Figure 10, Item 14) on hose
(Figure 10, Item 5) and right-side machine (Figure 10, Item 6).

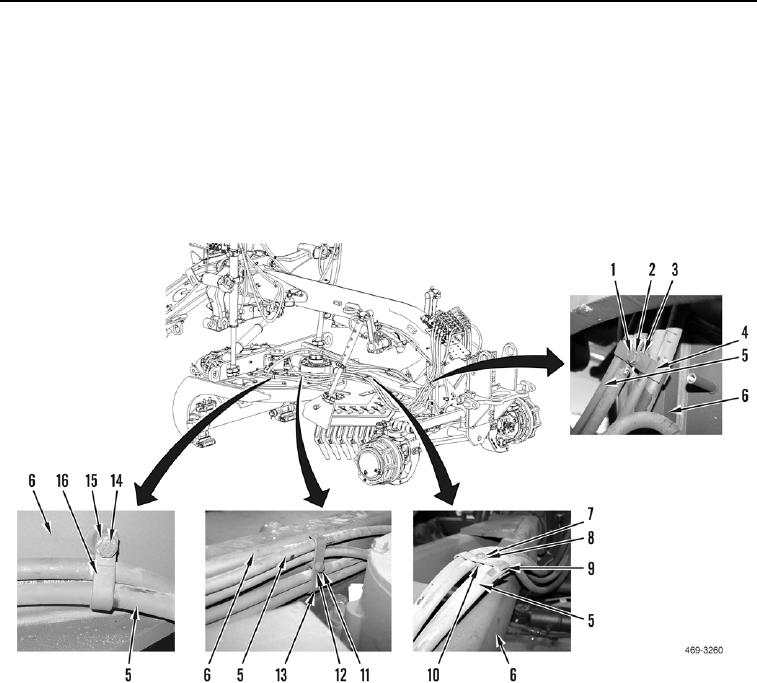

Figure 10. Right-Side Hose Clamps.
