TM 5-3805-293-23-5
0312
REMOVAL CONTINUED
WARN I N G
Hydraulic oil is very slippery. Immediately wipe up any spills. Failure to follow this warning
may cause injury to personnel.
N OT E
Tag and mark hoses to aid in installation.
Cap and plug all lines and fittingsat removal to prevent contamination.
3. Disconnect hose (Figure 2, Item 1) from elbow (Figure 2, Item 3).
4. Remove elbow (Figure 2, Item 3) from blade tip cylinder (Figure 2, Item 4) and remove two O-rings (Figure 2,
Item 2). Discard O-rings.
5. Remove two nuts (Figure 2, Item 6), four washers (Figure 2, Item 8), two bolts (Figure 2, Item 7), and four
clamps (Figure 2, Item 9) from two hoses (Figure 2, Items 1 and 5) and tray (Figure 2, Item 10).

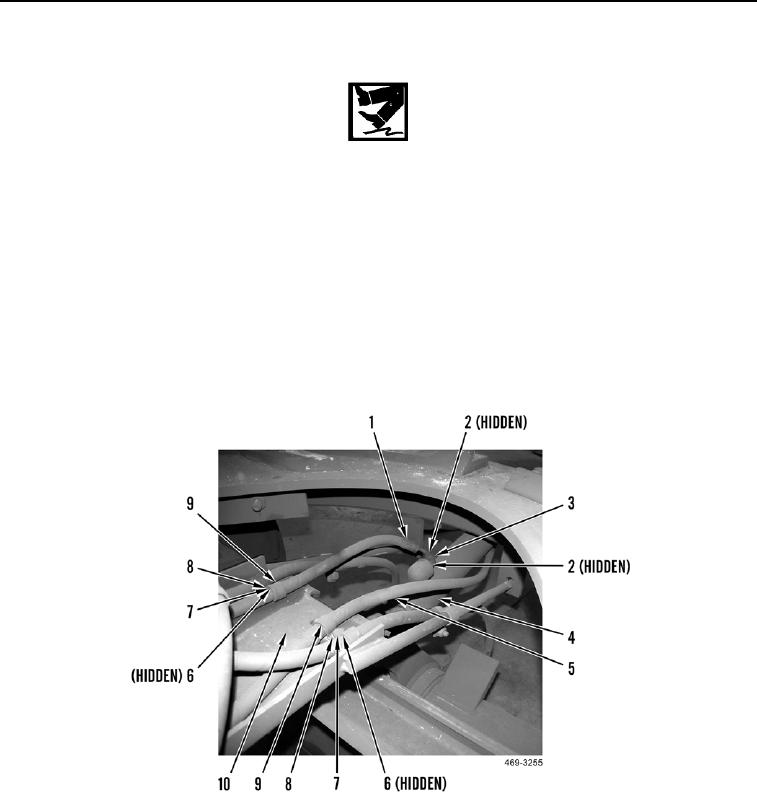

Figure 2. Blade Tip Lower Clamps.
0312
