TM 5-3805-293-23-5
0309
ADJUSTMENT
000309
1. Start machine (TM 5-3805-293-10).
2. Operate blade lift cylinders slowly while observing socket connection (Figure 10, Item 1) at top of circle
(drawbar/blade) (Figure 10, Item 2).
3. Observe socket for movement without circle movement, indicating adjustment required.

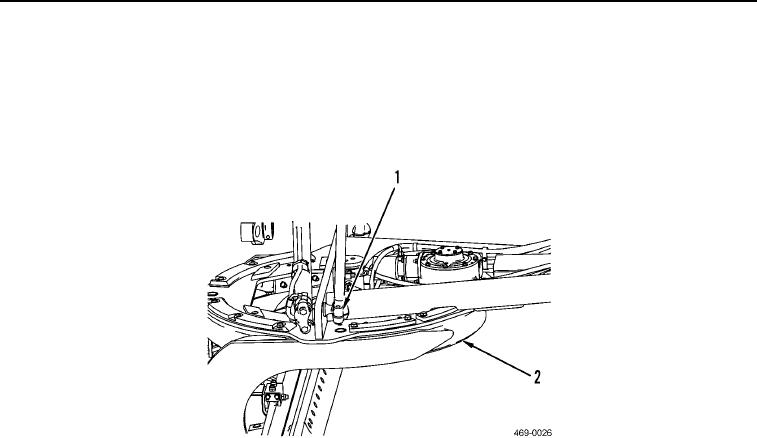

Figure 10. Blade Lift Cylinder Socket.
0309
4. Remove one shim from blade lift cylinder cap or blade lift cylinder rod.
5. If two shims from blade lift cylinder are removed, remove one shim from blade lift cylinder cap and one shim
from blade lift cylinder rod.
6. Repeat steps 2 and 3 to check for correct adjustment.
END OF TASK
FOLLOW-ON TASKS
000309
Check hydraulic system oil level (WP 0217).
END OF TASK
END OF WORK PACKAGE
