TM 5-3805-293-23-5
0300
DISASSEMBLY CONTINUED
N OT E
Note position and location of seals to aid in assembly.
17. Remove three seals (Figure 7, Items 1, 3, and 4) from centershift lock cylinder (Figure 7, Item 2). Discard
seals.

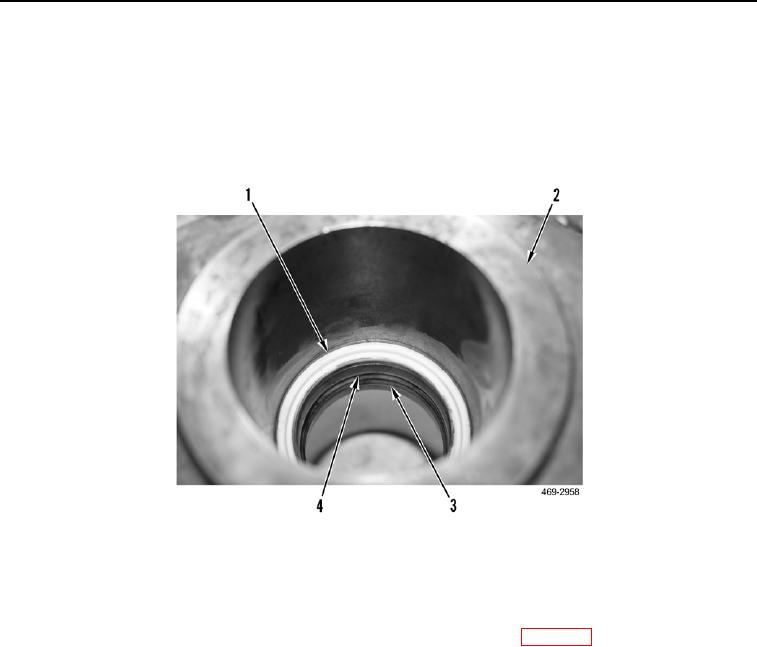

Figure 7. Centershift Lock Cylinder Seals.
0300
END OF TASK
CLEANING AND INSPECTION
000300
Clean and inspect all parts IAW Mechanical General Maintenance Instructions (WP 0346).
END OF TASK
