INSPECTION
000289
1. Inspect connector pins (Figure 2, Item 4) for damage.
2. Inspect sensor electrical connector (Figure 2, Item 3) for damage.
3. Inspect sensor insulation and wires (Figure 2, Item 2) for damage.
4. Inspect sensor housing (Figure 2, Item 1) for damage.
5. Inspect sensor gear (Figure 2, Item 5) for damage.

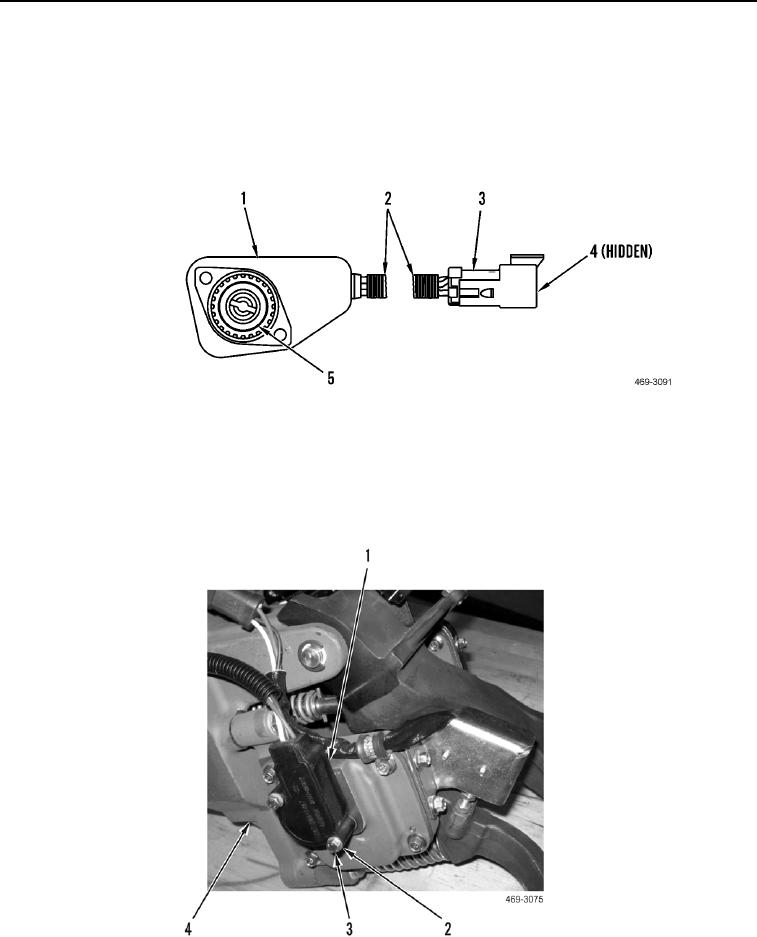

Figure 2. Sensor Inspection.
0289
END OF TASK
INSTALLATION
000289
Install inching pedal position sensor (Figure 3, Item 1), two washers (Figure 3, Item 2), and bolts (Figure 3, Item 3)
on pedal assembly (Figure 3, Item 4).
Figure 3. Position Sensor.
0289
END OF TASK
