TM 5-3805-293-23-5
0281
REMOVAL CONTINUED

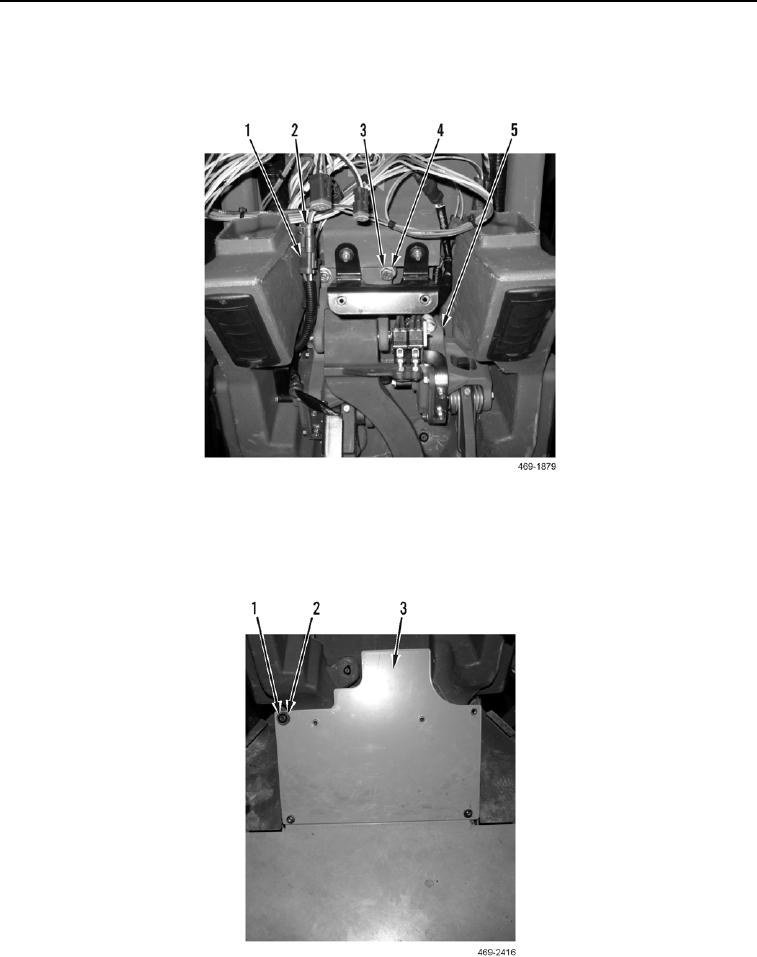

10. Disconnect five pigtail connectors (Figure 6, Item 1) from cab lower wiring harness (Figure 6, Item 2).
11. Remove three bolts (Figure 6, Item 3), washers (Figure 6, Item 4), and service brake control (Figure 6, Item 5)
from cab.
Figure 6. Service Brake Control.
0281
12. Remove three bolts (Figure 7, Item 1) and washers (Figure 7, Item 2) from panel (Figure 7, Item 3).
13. Remove panel (Figure 7, Item 3) from cab.
Figure 7. Pedal Floor Pan.
0281
