REMOVAL CONTINUED
3. Remove screw (Figure 2, Item 2) and washer (Figure 2, Item 3) from air duct (Figure 2, Item 1).
4. Remove air duct (Figure 2, Item 1) from cab.

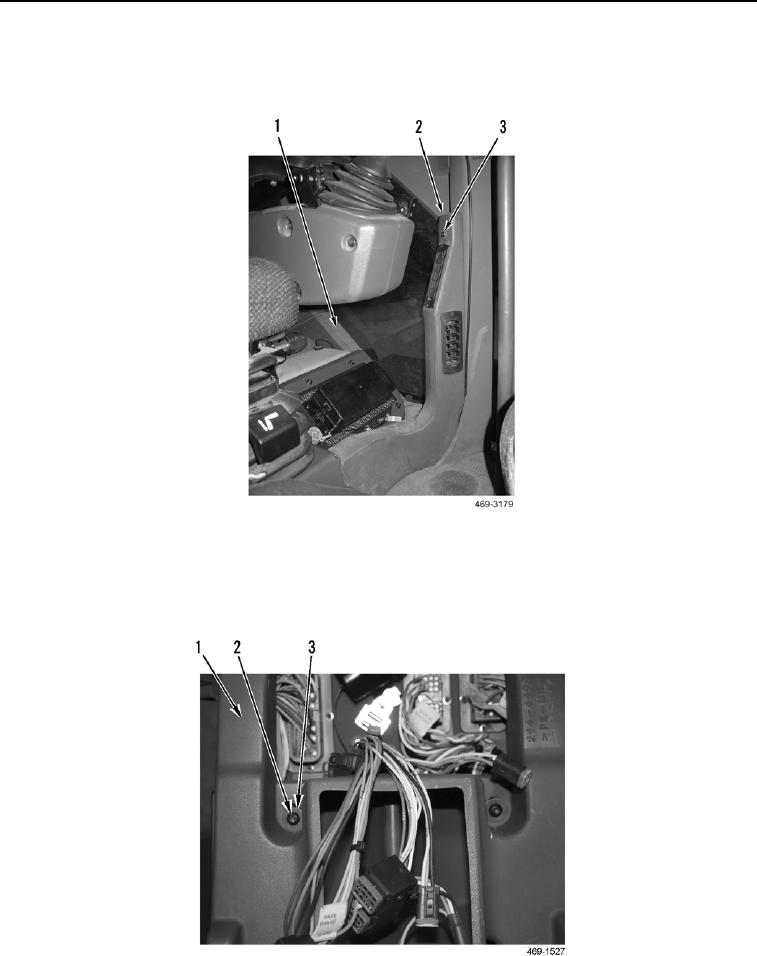

Figure 2. Left Front Air Duct.
0281
5. Remove two screws (Figure 3, Item 2) and washers (Figure 3, Item 3) from upper duct (Figure 3, Item 1).
6. Remove upper duct (Figure 3, Item 1) from cab.
Figure 3. Upper HVAC Duct.
