UPPER CAB REMOVAL CONTINUED
19. Remove two bolts (Figure 9, Item 3), washers (Figure 9, Item 4) and rifle bracket (Figure 9, Item 1) from
bracket (Figure 9, Item 2).
20. Rotate rifle bracket (Figure 9, Item 1) 180 degrees and install rifle bracket, two washers (Figure 9, Item 4), and
bolts (Figure 9, Item 3) on bracket (Figure 9, Item 2).

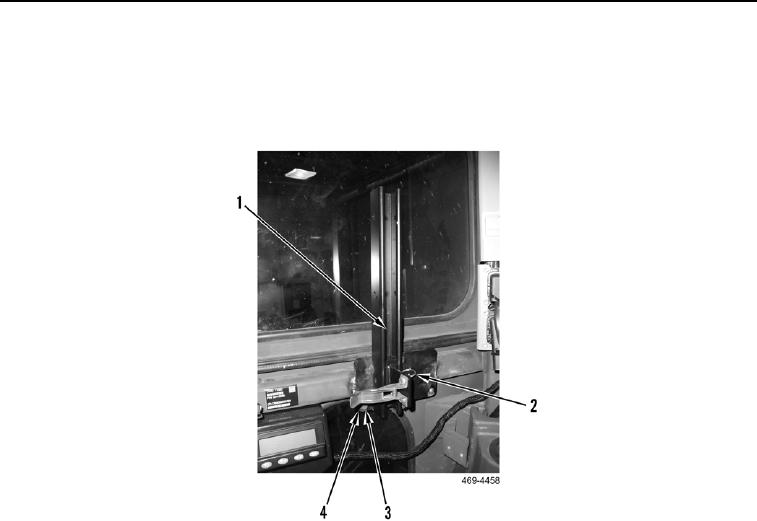

Figure 9. Rifle Bracket.
