INSTALLATION CONTINUED
000337
7. Connect positive battery cable (Figure 6, Item 2) to battery (Figure 6, Item 6). Tighten nut (Figure 6, Item 9).
8. Connect jumper battery cable (Figure 6, Item 7) to battery (Figure 6, Item 6). Tighten nuts (Figure 6, Items 5
and 8).
9. Connect negative battery cable (Figure 6, Item 4) to battery (Figure 6, Item 6). Tighten nut (Figure 6, Item 3).
10. Position four terminal covers (Figure 6, Item 1).

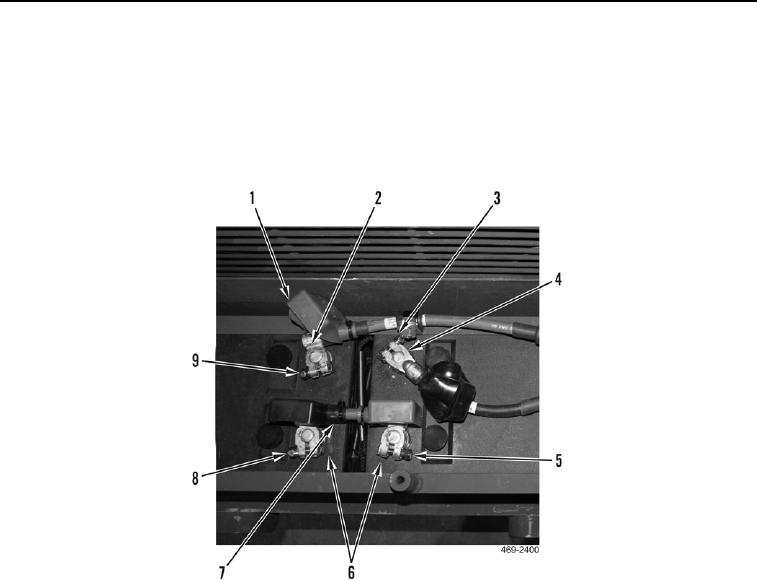

Figure 6. Battery Terminal Covers and Cables.
