TM 5-3805-293-23-5
0332
REMOVAL CONTINUED
5. Position two boots (Figure 4, Item 6) aside.
6. Remove two bolts (Figure 4, Item 7), washers (Figure 4, Item 8) and battery cables (Figure 4, Item 3) from
junction blocks (Figure 4, Item 9).
7. Remove two bolts (Figure 4, Item 4), washers (Figure 4, Item 5), four clips (Figure 4, Item 2) and battery cables
(Figure 4, Item 3) from engine enclosure panel (Figure 4, Item 1).

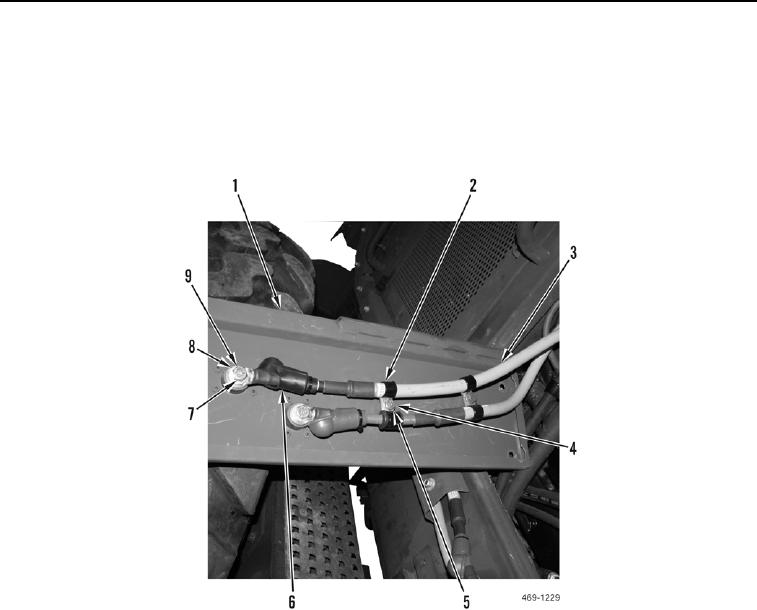

Figure 4. Interior Battery Cables.
0332
