TM 5-3805-293-23-5
0331
BATTERY CABLE INSTALLATION CONTINUED
000331

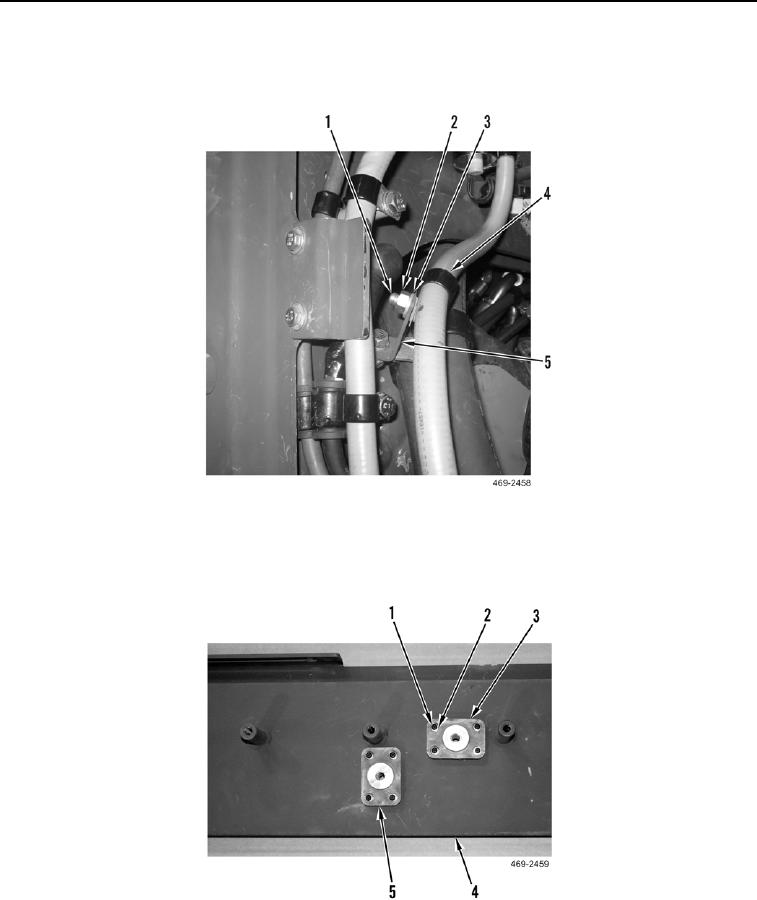

38. Install clamp (Figure 22, Item 4), two washers (Figure 22, Item 3), bolt (Figure 22, Item 1) and nut (Figure 22,
Item 2) on bracket (Figure 22, Item 5)
Figure 22. Negative Battery Cable Clamps.
0331
39. Install two junction blocks (Figure 23, Items 3 and 5), eight washers (Figure 23, Item 2), and screws (Figure 23,
Item 1) on new right front engine enclosure side access panel (Figure 23, Item 4).
Figure 23. Battery Cable Bulkhead Connectors.
0331
