TM 5-3805-293-23-5
0328
INSTALLATION CONTINUED
000328
12. Install clamp (Figure 19, Item 2), washer (Figure 19, Item 4), and bolt (Figure 19, Item 5) on hose (Figure 19,
Item 3) and stanchion (Figure 19, Item 1).

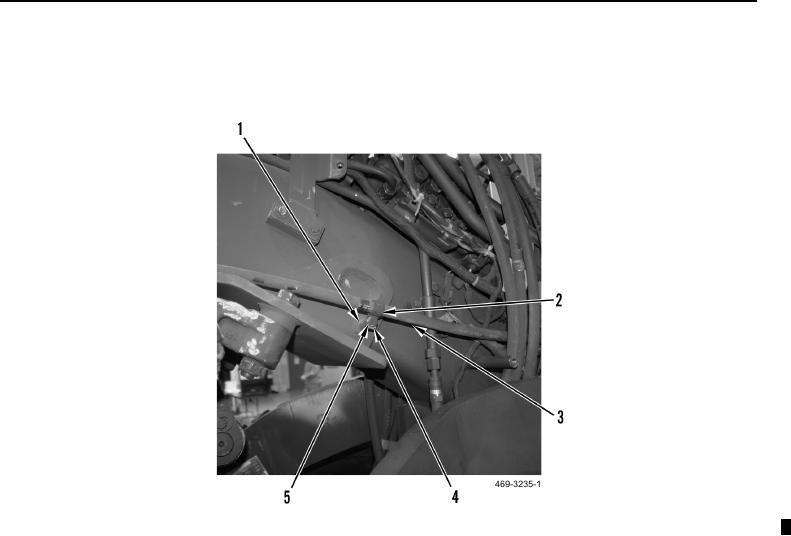

Figure 19. Right-Side Second Clamp (Serial Number Prefix CBS).
0328
Change 2
