TM 5-3805-293-23-5
0328
INSTALLATION CONTINUED
000328
6. Install two clamps (Figure 15, Item 2), washers (Figure 15, Item 4), and bolts (Figure 15, Item 3) on hose
(Figure 15, Item 1) and stanchions (Figure 15, Items 5 and 6).

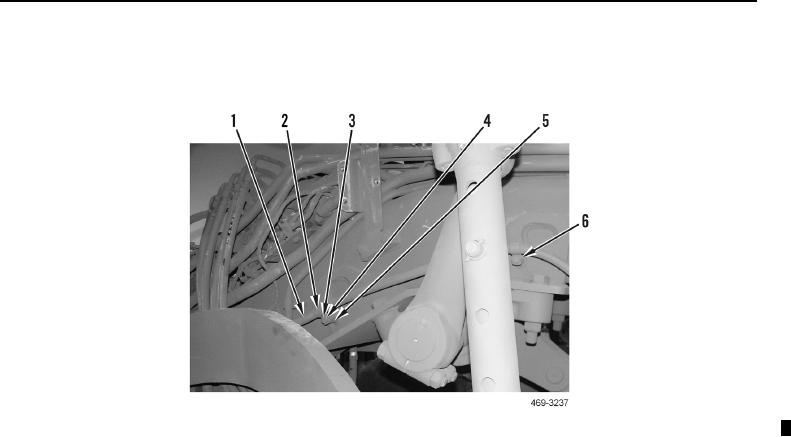

Figure 15. Left-Side Clamps (Serial Number Prefix CBS).
0328
Change 2
