TM 5-3805-293-23-5
0306
INSTALLATION CONTINUED
000306
3. Raise and roll blade/moldboard forward (TM 5-3805-293-10).
4. Install two wearstrips (Figure 8, Item 3) and plate (Figure 8, Item 1) on blade mount (Figure 8, Item 2).

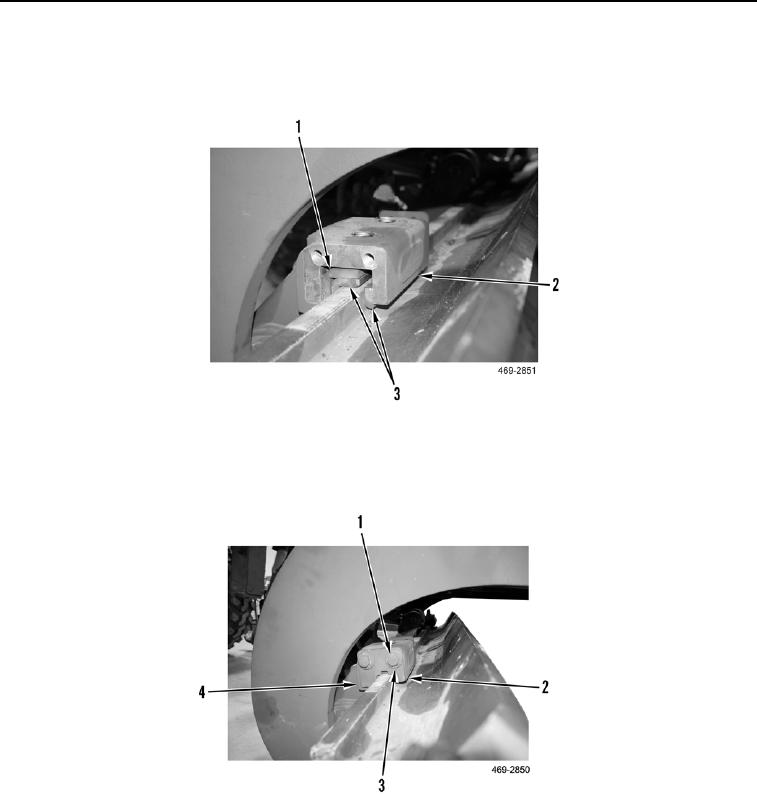

Figure 8. Upper Wearstrip.
0306
5. Install two plates (Figure 9, Item 2), four washers (Figure 9, Item 3), and bolts (Figure 9, Item 1) on blade
mount (Figure 9, Item 4).
Figure 9. Upper Wearstrip Plate.
0306
