TM 5-3805-293-23-5
0294
REMOVAL CONTINUED
N OT E
Tag and mark all wires to aid in installation.
Tag and mark all hoses to aid in installation.
17. Disconnect wiring harness (Figure 9, Item 4) from actuator (Figure 9, Item 7).
18. Remove six screws (Figure 9, Item 1) and cover (Figure 9, Item 2) from housing (Figure 9, Item 3).
19. Remove grommet (Figure 9, Item 5) and wiring harness (Figure 9, Item 4) from bracket (Figure 9, Item 6).
20. Position wiring harness (Figure 9, Item 4) aside.

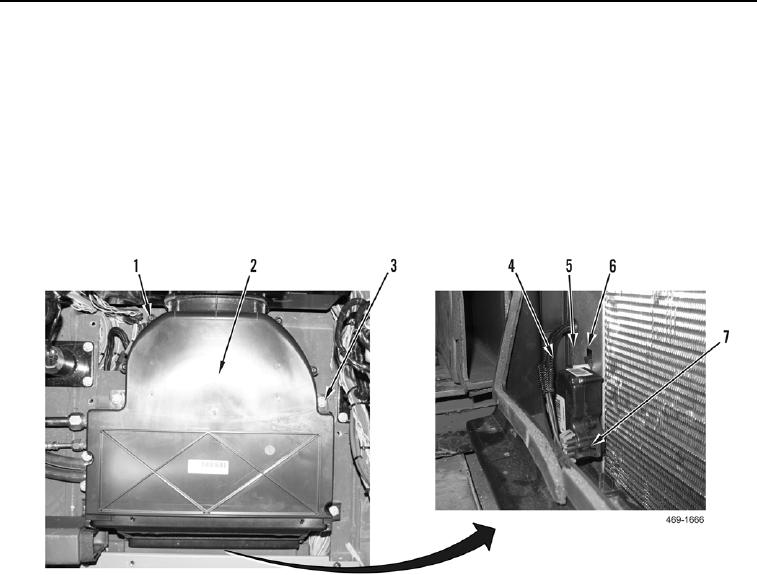

Figure 9.
Plenum Cover.
0294
